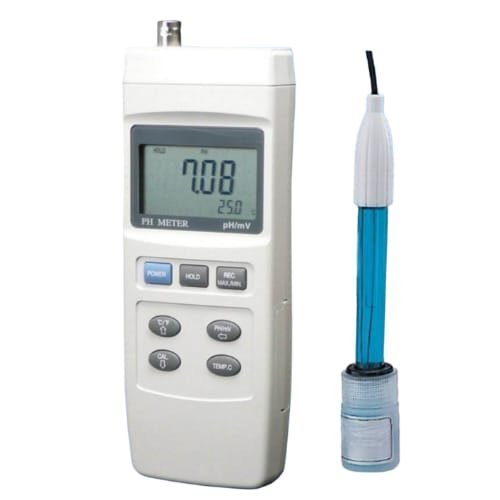

Handheld Dual – Function pH and mV Meter with ATC and Automatic Calibration Acoustic Testing Pro
Compact handheld pH and mV meter with ATC, automatic calibration, dual LCD display, and high accuracy for lab and field use.
Overview
This handheld meter is designed for precise pH and mV measurements, featuring dual LCD display, ATC temperature compensation, and easy front-panel calibration. Ideal for laboratory or field testing, it ensures accurate readings and convenient operation.
Features
- Dual-function LCD display with 51mm × 32mm screen and 15mm digit size for easy readability.
- Measures pH 0–14, mV -1999 to 1999, and temperature with manual adjustment from 0–100°C.
- Automatic temperature compensation (ATC) with optional TP-07 probe.
- Calibration for pH 4, pH 7, and pH 10 ensures precise readings.
- Compact design with light weight (250g including battery) for portability.
- Powered by DC 9V battery (006P) with low current consumption (~7mA).
Technical Specifications
| Display | 51 mm × 32 mm dual LCD |
| Digit Size | 15 mm (0.6″) |
| Measuring Range: pH | 0–14 pH |
| Measuring Range: mV | -1999–1999 mV |
| Resolution | 0.1 / 0.01 pH |
| Impedance | 10 Ω |
| Power Supply | DC 9V battery (006P, alkaline or heavy-duty type) |
| Power Current | Approx. 7 mA |
| Weight | 250 g / 0.55 lb (with battery) |
| Meter Size | 195 × 68 × 30 mm / 7.6 × 2.6 × 1.2 in |
| Calibration | pH 4, pH 7, pH 10 |
| Operating Humidity | Max. 80% RH |
| Single Package Size | 15 × 12 × 15 cm |
| Single Gross Weight | 1.000 KG |
| Temperature | 0–50°C / 32–122°F (operating) |
| Temperature Manual Adjustment | 0–100°C |
