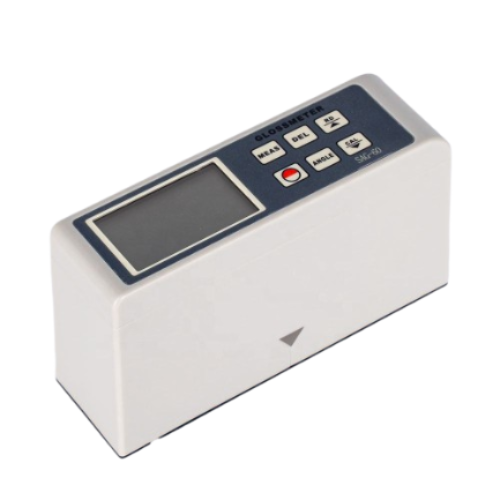

Eyelet Glossmeter for Paint – Paper – Plastic and Film – Acoustic Testing Pro
Acoustic Testing Pro Eyelet Glossmeter is a compact and precise instrument designed for measuring the surface gloss of a wide range of materials, including paint, ink, paper, bamboo, plastic, film, stone, tile, and other decorative materials.
Overview
Acoustic Testing Pro Eyelet Glossmeter is a compact and precise instrument designed for measuring the surface gloss of a wide range of materials, including paint, ink, paper, bamboo, plastic, film, stone, tile, and other decorative materials. This product complies with multiple international standards such as ASTM, DIN, EN, JIS, and TAPPI, ensuring reliable and consistent performance for professional applications. It features a user-friendly design with automatic calibration at the press of a button, eliminating the need for manual adjustments. This device is equipped with a backlit digital display for easy operation in low-light environments and offers storage for up to 254 sets of data, which can be viewed instantly or exported to a computer via USB or optional Bluetooth connection. With its high accuracy, durable structure, and portable size, this product is ideal for industries that demand precise gloss measurements. Powered by a rechargeable lithium battery, it provides long-lasting use without memory effect, making it both efficient and reliable for continuous operation.
Features
- Wide Application Range
- High Accuracy & Resolution
- Automatic Calibration
- Data Storage
- USB & Bluetooth Connectivity
- Backlit Digital Display
- Durable & Portable Design
- Rechargeable Lithium Battery
- International Standards Compliance
- Fast & Reliable Performance
Technical Specifications
| Display | Blue backlight, 4-bit digital display, 0.4 in (10 mm) LCD |
| Measuring Angle | 60° |
| Range | 0.1 GU to 200 GU |
| Photometric Units | GU |
| Accuracy | ±1.5 GU (relative to JJG 696-2002 reference standard) |
| Resolution | 0.1 GU |
| Repeatability | ±0.5 GU |
| Measurement Area | Ф 0.2 in (5 mm) |
| Numerical Memory | 254 groups |
| Work Environment | Temperature: 32°F to 104°F (0°C to 40°C); Humidity: 85% RH |
| Power Supply | 3.7 V lithium battery |
| Size | 5.51 in × 1.77 in × 2.95 in (140 mm × 45 mm × 75 mm) |
| Weight | 10.76 oz (305 g) (battery included) |
