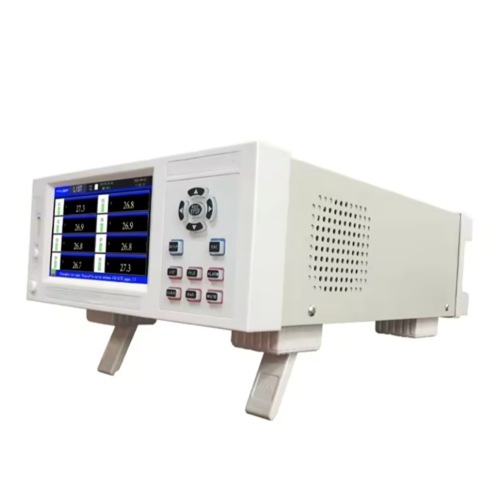

External Probe Temp Data Logger for Cold Chain Recording – Acoustic Testing Pro

External probe temperature data logger for precise cold chain monitoring with reliable recording and easy data retrieval.

SKU: ACTPTDL-400 Category:

Overview

Acoustic Testing Pro External Probe Temperature Data Logger for Cold Chain Recording is designed for accurate temperature monitoring during storage and transportation. This device uses an external probe to measure temperatures in hard-to-reach or insulated environments, ensuring reliable cold chain compliance. It offers continuous data logging, easy USB data transfer, and user-friendly software for generating detailed reports. Built for durability and precision, this product is ideal for pharmaceuticals, food transport, and other temperature-sensitive applications.



Features

  • External probe for precise temperature monitoring in insulated or remote areas.
  • Continuous data logging to ensure cold chain compliance.
  • Wide operating range for various temperature-sensitive goods.
  • USB connectivity for quick and simple data transfer.
  • User-friendly software for detailed report generation.
  • Compact and durable design suitable for transportation and storage.
  • High accuracy for critical pharmaceutical and food applications.
  • Long battery life to support extended monitoring periods.



Technical Specifications

Basic Accuracy ±0.2 °C (±0.36 °F) + 2 words (excluding thermocouple error)
Temperature Range -200 °C to 1820 °C (-328 °F to 3308 °F, varies by graduation)
Channels 8 channels per module, maximum 64 channels
Resolution 0.1 °C (0.18 °F)
Correction Independent error correction for each channel: Y = kx + b (x = measured value)
Number of Files 64 (cyclic recording)
File Capacity 130,000 groups per file (regardless of channel count)
U Disk Interface Export record files; supports direct viewing as a USB drive
Recording Duration At 1-second intervals: 97 days continuous; total = interval × 97 days
Speed Fast: 0.1 s/channel; Slow: 1 s/channel
Channel Isolation AC/DC up to 350 V; supports high-voltage live measurement with strong anti-interference
Control Output Two independent relay outputs: (H/L) and (HH/LL)
Alarm Single buzzer (can be muted)
Recording Interval Adjustable: 1–9999 seconds
Interfaces USB, RS485
Cold Junction Compensation Accuracy ±0.5 °C (±0.9 °F)
Display 5-inch TFT true color LCD, 854 × 480 pixels; supports real-time list, curve, bar graph, alarms, and historical data review
Power Supply AC 85–265 V ±10%, 50/60 Hz, <10 W
Environmental Conditions 5–40 °C (41–104 °F), 20%–80% RH (non-condensing)
Weight 6.61 lb (3 kg)
