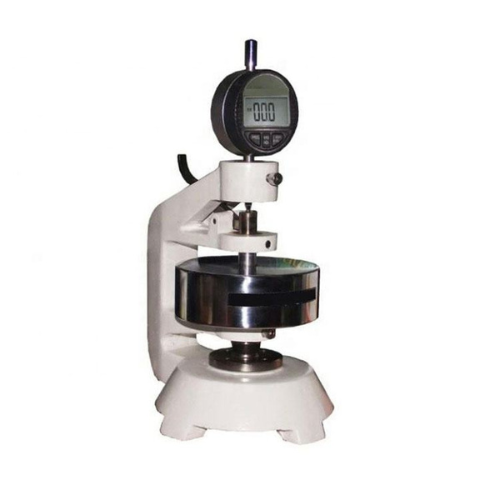

Digital Thickness Gauge Meter for Multiple Materials – Acoustic Testing Pro
Digital paper thickness tester for precise measurement of paper, cardboard, and sheet materials with 0.001 mm resolution and multiple display options.
Features
- High Precision: Measures thickness from 0–0.197 in with 0.000394 in or 0.0000394 in
- Low Indication Error: Accuracy within ±0.05%.
- Dual Display Options: Available in digital display or pointer type.
- Unit Conversion: Supports mm and inch measurement units.
- Wide Material Compatibility: Suitable for paper, paperboard, cardboard, leather, rubber, film, aluminum foil, and plastic.
- Standard Compliance: Meets GB/T 451.3-2002, ISO 534, and other relevant standards.
- Consistent Contact Pressure: 100 ± 5 kPa for reliable and repeatable results.
- Durable Construction: Built to withstand industrial and lab environments.
- OEM/ODM/OBM Support: Custom logo, packaging, and software reengineering available.
- Secure Packaging: Delivered in a standard wooden case with protective film.
Technical Specifications
| Display | LCD / Pointer |
| Measuring Range | 0 in to 0.197 in |
| Graduation Value | 0.000394 in/0.0000394 in |
| Indication Error | 0.05 % |
| Contact Area | 0.3100 ± 0.0078 in² |
| Contact Pressure | 100 ± 5 kPa |
| Parallelism | ≤ 0.00138 in |
| Unit | mm, inch (optional) |
| Display Type | Digital Display / Pointer |
| Data Output | Optional computer connection digital display dial |
| Machine Weight | About 5 kg (11.02 lb) |
