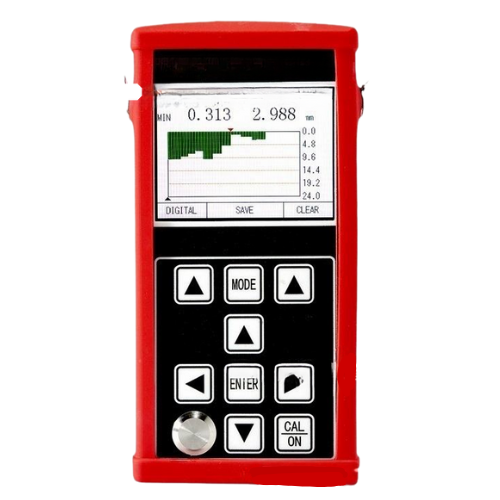

Digital Precision Ultrasonic Thickness Gauge for Steel – Acoustic Testing Pro
Digital ultrasonic thickness gauge with 0.0059–70.8661in measuring range and 0.000039in resolution. Supports A/B waveform analysis, coating penetration and high-temperature probes. Ideal for metal and non-metal inspection.
Features
- Extra-wide measuring range: 0.0059–70.8661 in
- Ultra-high precision with 0.000039in resolution
- Measures both ultra-thin and ultra-thick components
- Penetrates coatings to measure substrate thickness
- Supports coating thickness measurement with A/B waveform scanning
- Compatible with single crystal, twin crystal, and high-temperature probes
- Suitable for both metal (steel, aluminium, etc.) and non-metal materials (plastic, nylon)
- Ideal for one-sided access applications
- OEM/ODM customization support
Technical Specifications
| Measurement Range | 0.0059 in – 70.8661 in (0.15 mm –1800 mm) |
| Measurement Resolution | 0.01 in / 0.001 in / 0.0001 in (0.1 mm / 0.01 mm / 0.001 mm) |
| Material Sound Velocity Range | 400 m/s – 19,999 m/s |
| Operating Temperature | –10 °C to 60 °C (14 °F to 140 °F) (Humidity < 90%) |
| Dimensions | 7.244 in × 3.346 in × 1.259 in (184 mm × 85 mm × 32 mm) |
| Weight | 0.551 lb (250 g) |
| Power Supply | 3 × AA lithium-ion batteries |
| Display Screen | 3.5-inch colour screen |
