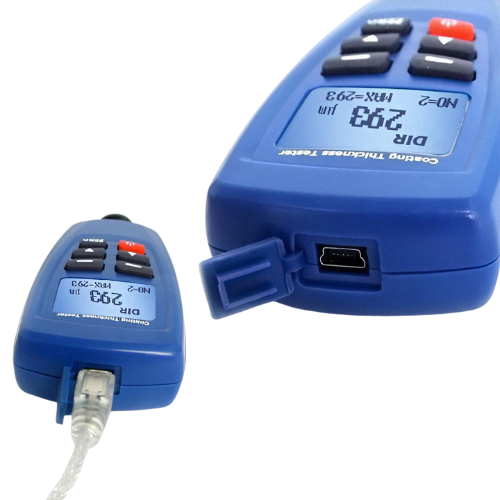

Name: Digital DT - 156 Paint Coating Thickness Gauge Meter Tester - Acoustic Testing Pro - Acoustic Testing Pro
SKU: ACTPPSTG-034

Features

Dual measurement (magnetic induction & eddy-current) with auto/manual switch.
Range 0–1250 µm, tolerance ± (3% + 1 µm), resolution 0.1 µm.
CONTINUOUS/SINGLE modes & DIRECT/GROUP modes, stores 400 readings.
Statistical functions: average, max, min, count, standard deviation.
USB connectivity, backlit LCD, alarms, error & low-battery alerts.
Compact (110×50×23 mm), lightweight (100–110 g), V-groove probe for cylindrical parts.

Technical Specifications

Specification	Details
Measurement Principle	Dual technology: magnetic induction (ferrous) and eddy current (non-ferrous)
Measuring Range	0 to 1250 µm (0 to 49.2 mils)
Accuracy (F probe)	± (3 % H + 1 µm) (for ≤850 µm), ±5 % (for 850–1250 µm)
Accuracy (N probe)	± (3 % H + 1.5 µm) (for ≤850 µm), ±5 % (for 850–1250 µm)
Resolution	0–50 µm: 0.1 µm; 50–850 µm: 1 µm; 850–1250 µm: 0.01 mm
Minimum Curvature Radius	F: convex 1.5 mm (0.06 in); N: convex 3 mm (0.12 in)
Minimum Measuring Area Diameter	F: Ø 7 mm (0.28 in); N: Ø 5 mm (0.20 in)
Critical Substrate Thickness	F: 0.5 mm (0.02 in); N: 0.3 mm (0.012 in)
Measurement Modes	Continuous or Single; Working modes: Direct and Group
Statistical Functions	Mean, Max, Min, Count, Standard Deviation
Memory Capacity	Total 400 readings (80 Direct + 320 Group)
Data Interface	USB connection for PC software
Auto Power-off and Battery Alerts	Auto-shutdown (can be disabled); Low battery & error indicators
Operating Temperature	0 °C – 40 °C (32 °F – 104 °F)
Relative Humidity	20 % to 90 % RH
Product Weight	~100 g (≈ 3.5 oz)
Dimensions (H × W × D)	113.5 mm × 54 mm × 27 mm (4.47 in × 2.13 in × 1.06 in)
