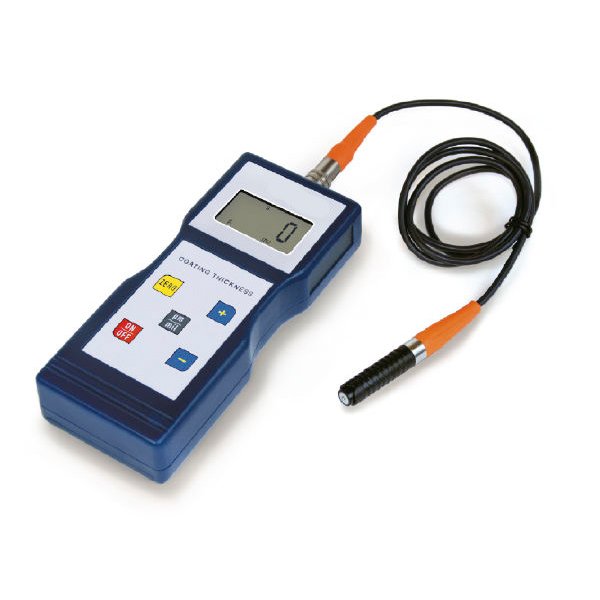

Coating Thickness Gauge With C Pad (Eddy Current)
Overview
Acoustic Testing Pro Coating thickness gauge with C pad measures the thickness of coating using eddy current and magnetic permeability method.
Key Features
- High accuracy (1%+1).
- Split design strong applicability measured value stability.
- Short response time fast measurement speed.
- 7 kinds of sensors (F400 F1 F1/90 ° F10 N400 N1 CN02) are available to meet customer needs a variety of measurement.
Technical Specifications
| Measuring range | F400：0~400μm N400：0~400μm
F1：0~1250μm F1/90：0~1250μm N1：0~1250μm F10：0~10000μm CN02：10~200μm |
| Calibration method | One point calibration / two point calibration / Basic Calibration |
| Resolution | 0.1μm（0-99.9μm）
1μm （over100μm） |
| Weight | 0.66lb(300g) |
| Working environment | 0 to 122f (0℃~50℃) Humidity：20%～90% |
| Operation | Operation mode
Direct testing and group testing |
| Power off | Manual / auto |
| Operation indication | Musical tones for error |
| Probe | F400/ N400/ F10/ CN02/ F1/90 |
| Input/output | Communication / USB |
