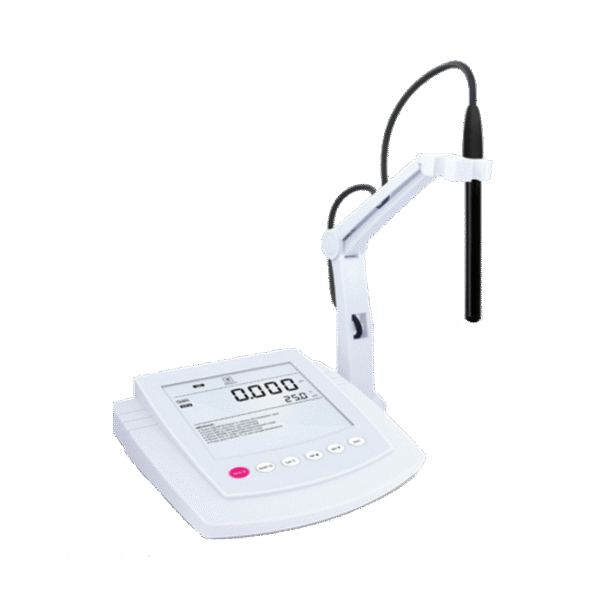

Name: Benchtop Ion Meter for silver Ion (mV Measurement Mode) - Acoustic Testing Pro
SKU: ACTPZ100Z1

Key Features

Selectable temperature unit (°C or °F) meets different application requirements.
mV measurement mode allows user to check performance of the ion selective electrode.
Automatic electrode diagnosis shows the slope of sensor.
Help message as a operational guide that helps user quickly begin using the meter.
System menu allows setting the 8 parameters, including the concentration unit, stability
condition, hold function, etc.
Reset feature automatically resumes all parameters back to factory default settings.

Technical Specifications

Ion
Range	1×10^-7~1M, 0.01~107900ppm
Accuracy	±1% F.S
Resolution	0.001, 0.01, 0.1, 1
Calibration Points	2 to 5 points
Calibration Solutions	0.001, 0.01, 0.1, 1, 10, 100, 1000, 10000ppm, mol/L, mg/L
mV
Range	-1999.9~1999.9mV
Accuracy	±0.2mV
Resolution	0.1mV
Temperature
Range	0~105°C, 32~221°F
Accuracy	±0.5°C, ±0.9°F
Resolution	0.1°C
Calibration Range	Measured value ±10°C
Temperature Units	°C or °F
Others
Temperature Compensation	0~100°C, 32~212°F
Compensation Mode	Manual or Automatic
Hold Function	Manual or Automatic
Stability Conditions	Low or High
Calibration Due	0 to 31 days
Power Off	Manual or Automatic (10, 20, 30 minutes)
Reset Function	Yes
Memory	Stores up to 500 data sets
Output	USB Communication Interface
Connector	BNC
Display	LCD (130×110mm)
Power Requirements	DC5V, using AC adapter, 220VAC/50Hz
Dimensions	210(L)×188(W)×60(H)mm
Weight	1.5kg
