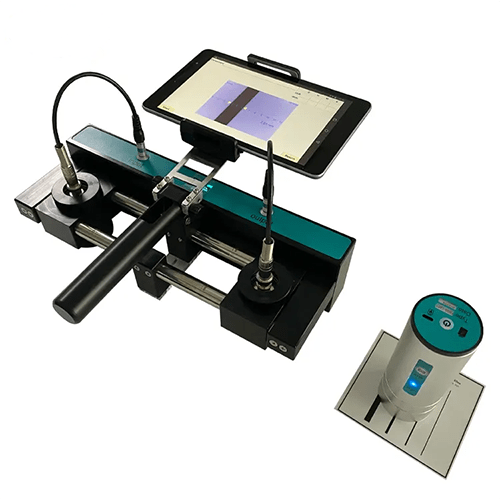

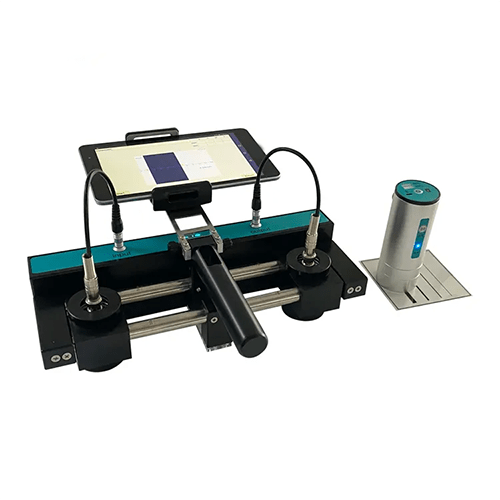

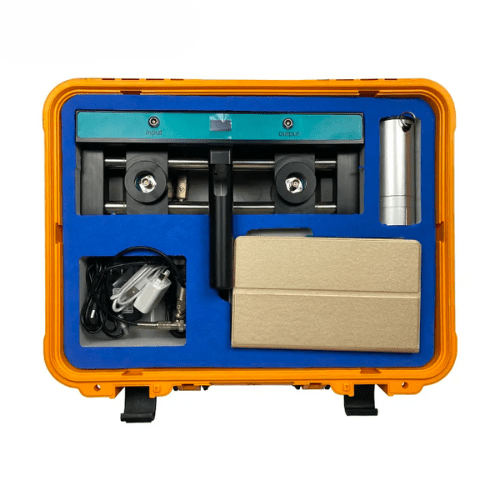

Acoustic Testing Pro Wireless Integrated Crack Detector
Acoustic Testing Pro Wireless Integrated Crack Detector is used for automatic measurement of crack width and depth on structure surface, automatic interpretation, and data storage.
Overview
Acoustic Testing Pro Wireless Integrated Crack Detector is used for automatic measurement of crack width and depth on structure surface, automatic interpretation, and data storage.
Features
- Wireless Cloud Transmission Upgrade
- Original wireless camera probe
- Snap button operation is convenient
- The host adopts an Android system tablet computer
- Chinese full-touch operation
- Intelligent interpretation of oblique cracks
- Images can be zoomed in and out
- The interface displays the scale
- Bracket-Free Sounding Option
- Saving time and effort
- Tablet computer
- TF card storage
- Large capacity without limit
- Copying data is convenient and fast
- On-Board Data Analysis and Reporting
Technical Specifications
| Master Control Unit | 8-in tablet Android operating system |
| Wireless Width Gauge Unit Test Range And Accuracy | 0 in or 0.39 in or 0.00 in (0 mm or 10 mm or 0.01 mm) |
| Wireless Width Gauge Unit Magnification | Digital 60 times |
| Wireless Width Gauge Unit Operational Mode | Touch screen + shortcut keys |
| Wireless Width Gauge Unit Connection Mode | Wifi connection |
| Wireless Width Gauge Unit Data Transmission Mode | Wireless cloud transmission (optional) |
| Wireless Width Gauge Unit Measuring Method | Automatic/ manual |
| Working Hours | More than 10 hours |
| Test Scope | 0.19 in to 19.58 in (5 mm to 500 mm) |
| Wireless Depth Gauge Unit Measurement Accuracy | Less than 0.19 in (5 mm) or 2% to 10% of the actual depth |
| Wireless Depth Gauge Unit Operational Mode | Touch screen + probe automatic trigger |
| Wireless Depth Gauge Unit Connection Mode | Bluetooth connection |
| Wireless Depth Gauge Unit Data Transmission Mode | Wireless cloud transport(options) |
| Wireless Depth Gauge Unit Measuring Method | Fast/standard measurement |
| Application | Project site |
| Basic Principle | Ultrasonic |
| MOQ | 1 Set |
| Wireless Width Gauge Unit Power Wireless Width Gauge Unit Supply Mode | Built-in lithium battery |
| Wireless Depth Gauge Unit Power Supply Mode | Built-in lithium battery |
| Wireless Depth Gauge Unit Working Hours | More than 10 hours |
| Wireless Width Gauge Unit Working Environment | -14 °F to 104 °F (-10 ℃ to 40℃) |
| Wireless Width Gauge Unit Working Environment RH | 90% RH |
| Dimensions | 16.53 in x 5.51 in x 13.14 in (420 mm 140 mm x 335 mm) |
| Weight | 17.85 lb. (8.1 kg) |
