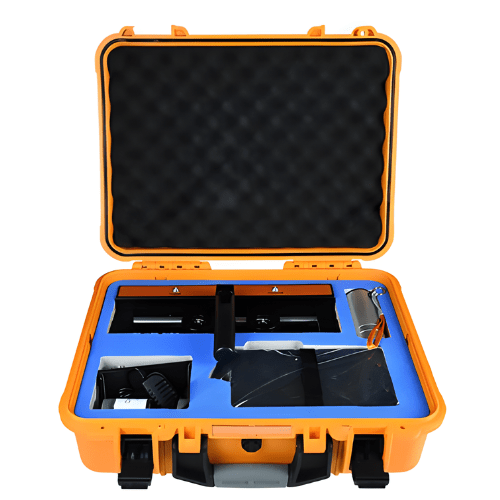

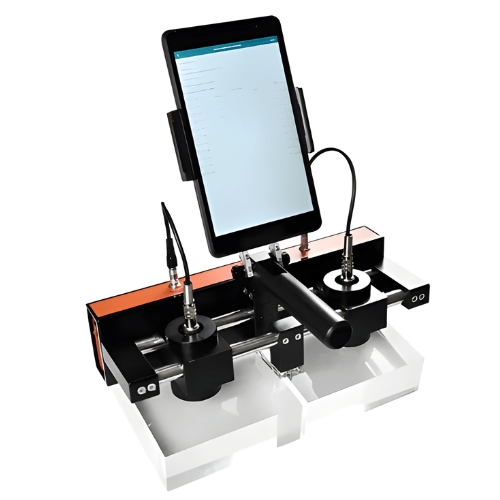

Acoustic Testing Pro Wireless Crack Width Detector
This Wireless Crack Width Detector has a working temperature of -14 °F to 104 °F, test range of 0 in to 0.39 in and a magnification of 60 times.
Features
- Integral design
- Compact size
- Easy to carry
- Make work efficient
- Measurement data can be calibrated manually
Technical Specifications
| Master Control Unit | 8-in tablet Android operating system |
| Wireless Width Gauge Unit Test Range | 0 in to 0.39 in (0 mm to 10 mm) |
| Wireless Width Gauge Unit Accuracy | 0 in (0.01mm) |
| Wireless Width Gauge Unit Magnification | Digital 60 times |
| Wireless Width Gauge Unit Operational Mode | Touch screen + shortcut |
| Wireless Width Gauge Unit Connection Mode | Wi-Fi connection |
| Wireless Width Gauge Unit Data Transmission Mode | Wireless cloud transmission (optional) |
| Wireless Width Gauge Unit Measuring Method | Automatic or manual |
| Wireless Width Gauge Unit Working Hours | More than 10 hours |
| Wireless Width Gauge Unit Working Environment | ＜90% RH |
| Wireless Depth Gauge Unit Test Scope | 0.19 in to 19.68 in (5 mm to 500 mm) |
| Wireless Depth Gauge Unit Measurement Accuracy | Less than 0.19 in (5 mm) or 2% to 10% of the actual depth |
| Wireless Depth Gauge Unit Operational Mode | Touch screen + probe automatic trigger |
| Wireless Depth Gauge Unit Connection Mode | Bluetooth connection |
| Wireless Depth Gauge Unit Data Transmission Mode | Wireless cloud transport(options) |
| Wireless Depth Gauge Unit Measuring Method | Fast or standard measurement |
| Wireless Width Gauge Unit Power Supply Mode | Built-in lithium battery |
| Wireless Depth Gauge Unit Power Supply Mode | Built-in lithium battery |
| Wireless Depth Gauge Unit Working Hours | More than 10 hours |
| Wireless Width Gauge Unit Working Environment | -14 °F to 104 °F (-10 ℃ to 40 ℃) |
| Dimensions | 16.53 in x 5.51 in x 13.18 in (420 mm x 140 mm x 335 mm) |
