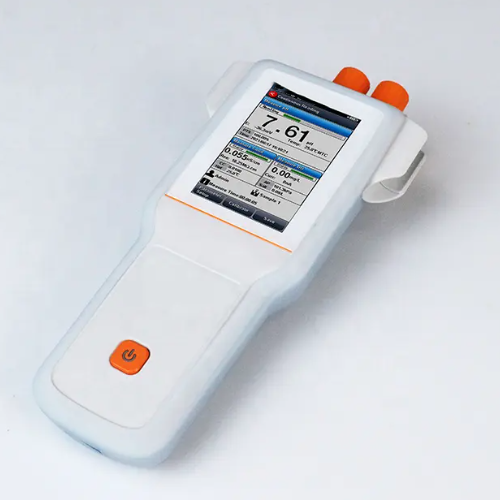

Acoustic Testing Pro Waterproof Portable Ion Meter
This Waterproof Portable Ion Meter has a pH range of -2 pH to 20 pH, pX accuracy of ±0.002 pX, and pH resolution of 0.1, 0.01, 0.001 pH.
Features
- 3″ Color LCD touchscreen display
- Intelligent system for user and calibration management
- Multi-reading modes: auto, timed, continuous
- Automatic temperature compensation for accuracy
- Auto-hold locks measurement endpoint
- 1000-set data storage (GLP-compliant)
- Data analysis for review and comparison
- USB communication support
- Auto-power off for extended battery life
- Reset to factory defaults feature
- IP65 waterproof for outdoor use
Technical Specifications
| Parameters | pH / ISE / Temp. (mV / ORP / pX) |
| pH | |
| Range | 2 pH to 20pH |
| Resolution | 0.1, 0.01, 0.001 pH |
| Accuracy | ±0.002 pH |
| Calibration Points | Up to 8 |
| Standard Customization | Yes |
| Calibration Reminder | Yes |
| Standard Recognition | USA, NIST, MERK, JIS, GB and DIN buffers |
| Slope Limit | Yes |
| mV / ORP | |
| Range | -2000 mV to 2000 mV |
| Resolution | 0.1, 0.01 mV |
| Accuracy | ±0.1 mV or ±0.03% of reading whichever is greater |
| EH ORP Mode | Yes |
| ORP Calibration Points | 1 custom point (relative mV) |
| pX | |
| Range | -2 pX to 20 pX |
| Resolution | 0.1, 0.01, 0.001 pX |
| Accuracy | ±0.002 pX |
| Calibration Points | Up to 6 |
| ISE | |
| Range | 1e-9 to 9.999e9 |
| Units | mol/L, mmol/L, g/L, mg/L, μg/L |
| Resolution | Up to 4 significant digits |
| Accuracy | ±0.3% |
| Calibration Points | Up to 8 |
| Measurement | |
| Reading Mode | Auto Read (Fast, Medium, Slow), Timed, Continuous |
| Reading Prompts | Reading, Stable, Locked |
| Temp. Compensation | ATC, MTC |
| Data management | |
| Data Storage | 1000 Groups |
| GLP Features | Yes |

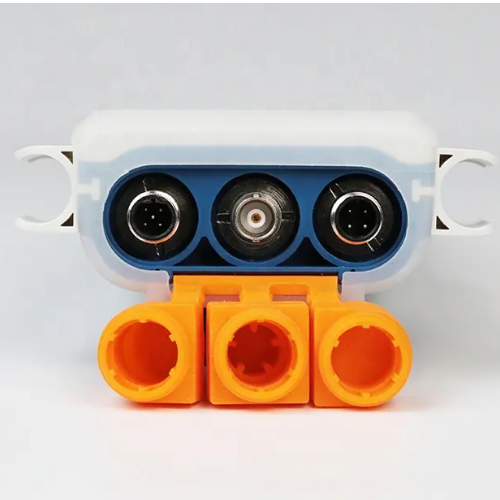

| Inputs | |
| pH Electrode | BNC (Q9) |
| Temp. Probe | 4-pin aviation connector |
| Outputs | |
| USB | USB 2.0 flash memory device, PC, scanner |
| Bluetooth | Printer |
| Display options | |
| Backlight | Yes |
| Auto Shutdown | 300, 600, 1200, 1800, 3600 sec., off |
| IP Rating | IP65 |
| Date and Time | Yes |
| Power | Rechargeable Lithium battery, AC Adapter, 100 V to 240 V AC input, DC5 V output |
| Temperature Range | 14 °F to 275 °F (-10 °C to 135 °C) |
| Temperature Unit | °C, °F |
| Temperature Resolution | 0.18 °F (0.1 °C) |
| Relative Accuracy | ±0.18 °F (±0.1 °C) |
| Dimensions | 3.54 in x 10.03 in x 1.57 in (90 mm x 255 mm x 40 mm) |
| Weight | 1.10 lb (500 g) |
