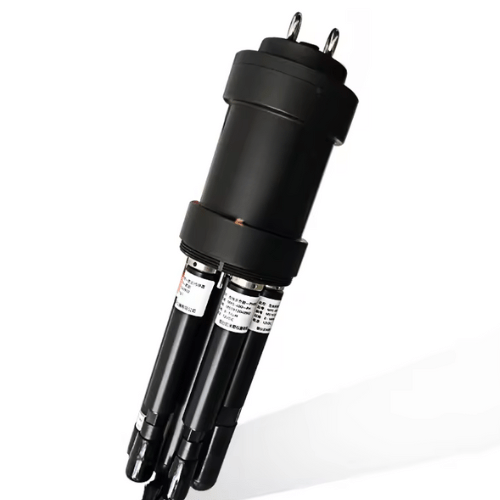

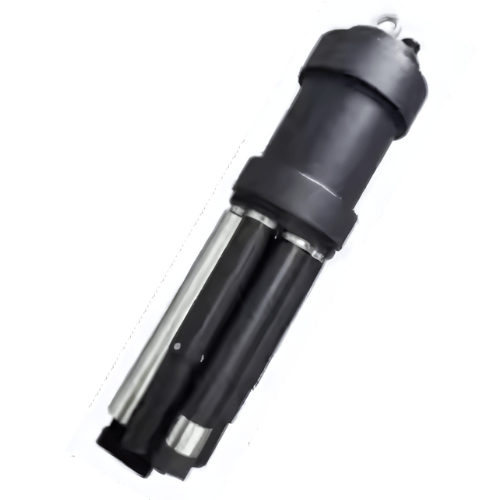

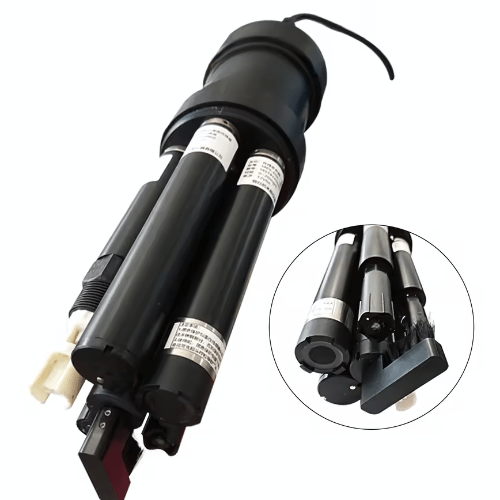

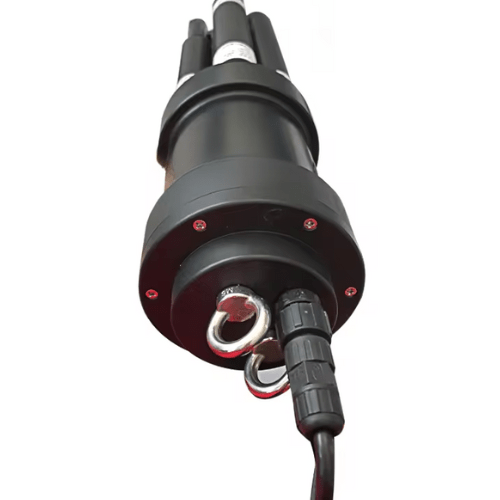

Acoustic Testing Pro Water Quality Sensor
Acoustic Testing Pro water quality sensor is integrated and designed to be reliable and easy to use.
Overview
Acoustic Testing Pro water quality sensor is integrated and designed to be reliable and easy to use. Up to 8 parameters can be measured simultaneously. The sensor types can be selected such as dissolved oxygen, COD, pH, ORP, conductivity/salinity, ammonia nitrogen, turbidity, etc. Using RS485 bus (Modbus RTU) communication protocol, data can be directly transmitted to the acquisition platform.
Features
- Digital sensor, RS485 bus (Modbus RTU) communication protocol
- Equipped with automatic cleaning device
- Optional digital sensors
- Integrated design, can measure 8 parameters (including temperature) at the same time
Technical Specifications
| Measuring range | 0 mg per l to 20 mg per l |
| Accuracy | ± 0.4 mg per l |
| Resolution | 0.01 mg per l |
| Measuring range and
Accuracy |
0 ntu to 100 ntu ± 3 % or ± 2 ntu 0 ntu to 1000 ntu ± 5 % or ± 3 ntu |
| Resolution | 0.1 ntu |
| Measuring range and Resolution |
0 uS per cm to 5000 uS per cm 1 uS per cm 0 mS per cm to 200 mS per cm 0.1 mS per cm 0 psu to 70 psu 0.1 psu |
| Accuracy | ± 1.5 % F.S |
| Measuring range | 0 mg per l to 200 mg per l equiv. KHP 0 ntu to 100 ntu 0 mg per l to 500 mg per l equiv. KHP 0 ntu to 200 ntu |
| COD accuracy | ± 5 % F.S |
| COD resolution | 0.1 mg per l |
| Turbidity accuracy | ± 5 % F.S |
| Turbidity resolution | 0.1 ntu |
| Measuring range | 0 pH to 14 pH |
| Accuracy | ± 0.1 pH |
| Resolution | 0.01 pH |
| Measuring range | – 1500 mV to + 1500 mV |
| Accuracy | ± 6 mV |
| Resolution | 1 mV |
| Measuring range | 0 mg per l to 100 mg per l or 0 mg per l to 1000 mg per l |
| Accuracy | ± 10 % or ± 2 mg per l |
| Resolution | 0.1 mg per l |
| Output | RS485 (Modbus RTU) |
| Cleaning method | Automatic cleaning |
| Power consumption | 5 w 12 V |
| power supply | 12 vdc ± 5 % |
| Measuring range | 32 °F to 122 °F (0 ℃ to 50 ℃) |
| Accuracy | 0.5 °F (± 0.5 ℃) |
| Resolution | 0.1°F (0.1 ℃) |
| Cable length | 16.40 ft (5 m), other length can be customized |
