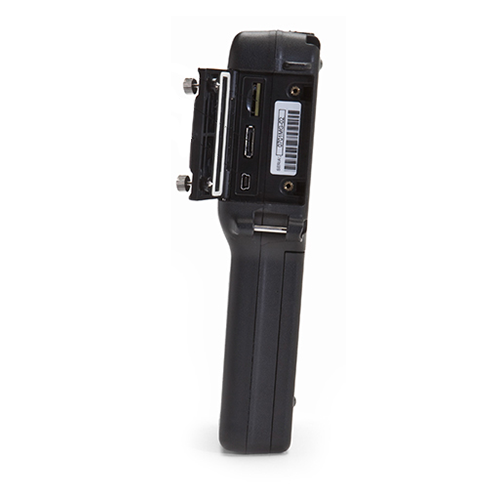

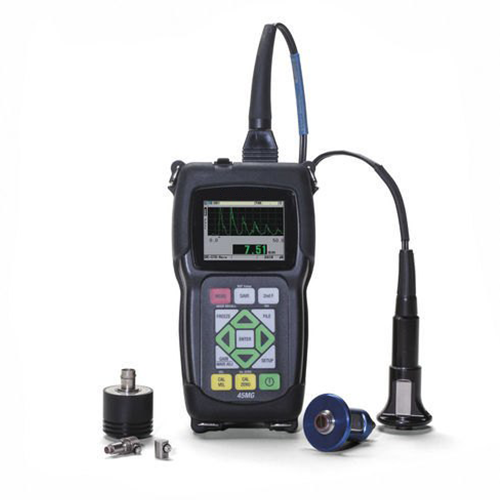

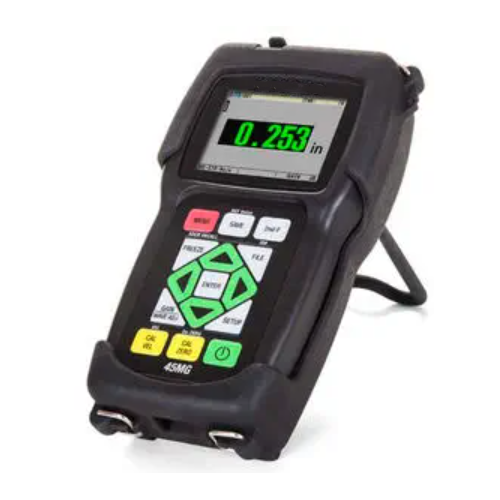

Acoustic Testing Pro Ultrasonic Thickness Gauge Testers
Acoustic Testing Pro ultrasonic thickness gauge testers combine ease of use and accuracy with a durable design. Ideally suited for almost every ultrasonic thickness gauging application, this ultrasonic gauge is compatible with a full line of dual and single-element transducers.
Overview
Acoustic Testing Pro ultrasonic thickness gauge testers combine ease of use and accuracy with a durable design. Ideally suited for almost every ultrasonic thickness gauging application, this ultrasonic gauge is compatible with a full line of dual and single-element transducers. It can be used in applications ranging from wall thinning measurements of internally corroded pipes with dual-element probes to very precise thickness measurements of thin or multilayer materials with single-element transducers.
Features
- AC or battery operation
- Kits available with standard dual-element transducers charger
- AC adaptor (100 V AC, 115 V AC, 230 V AC)
- Internal data logger
- Gage View interface program
- Test block and couplet
- USB Cable
- Rubber protective boot with gage stand and neck strap
- User’s manual
Technical Specifications
| Thru-Paint-Echo-to-Echo | Time interval between two successive black wall echoes to eliminate paint or coating thickness |
| Thickness Range | 0.003 in to 25 in (0.08 mm to 635 mm) Depending on material |
| Resolution | Low: 0.01 in (0.1 mm),
Standard: 0.001 in (0.01 mm), |
| Transducer Frequency Range | Standard: 2.0 MHz to 30 MHz,
High Penetration: 0.50 MHz to 30 MHz |
| Keypad | Sealed, Color coded keypad with tactile and audible feedback |
| Case | Impact-resistant and water resistant |
| Protection | IP 67 |
| Power Supply | AC or DC adaptor 24 V |
| Battery Life | Minimum 12.6 hrs.,
Maximum: 14.7 hrs. |
| Display | Liquid crystal display. |
| Display Size | 2.2 in x 2.95 in (56.16 mm x 74.88 mm) |
| Rectification | Full wave, RF, half wave positive, or half wave negative |
| Capacity | 475000 thickness measurements or 20000 waveforms with thickness measurements |
| File Structures | Nine Standard or custom application-specific file structures |
| Operating Temperature Range | 14 °F to 122 °F (-10 °C to 50 °C) |
| Dimensions (W x H x D) | 4.92 in x 8.31 in x 1.82 in (125 mm x 211 mm x 46 mm) |
| Weight | 1.80 lb. (814 g) |
