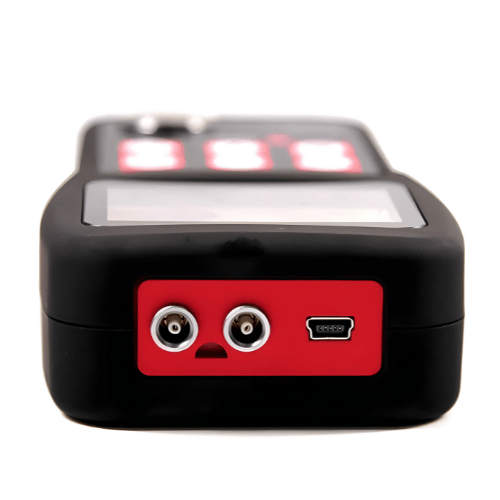

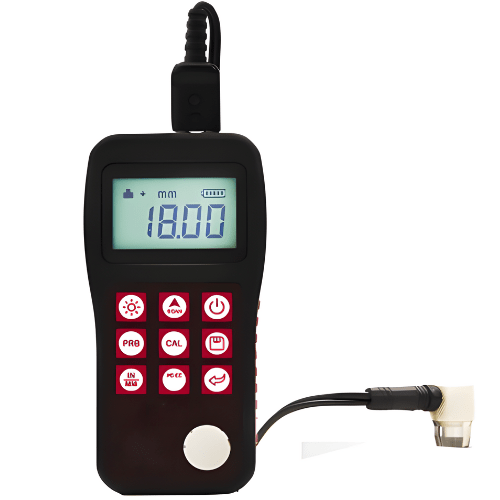

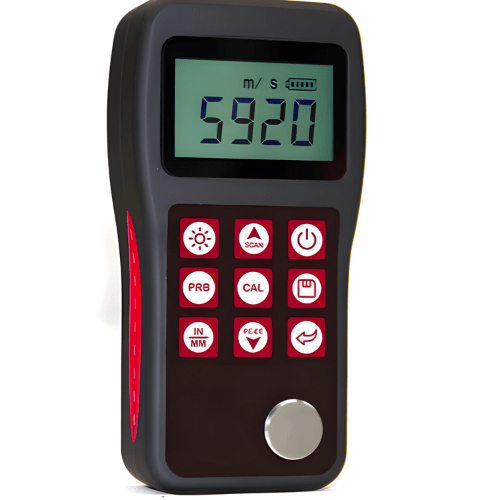

Acoustic Testing Pro Ultrasonic Thickness Gauge Meter Tester
Acoustic Testing Pro Ultrasonic Thickness Gauge Meter Tester adapted to all kinds of materials which are good conductors of ultrasonic waves.
Overview
Acoustic Testing Pro Ultrasonic Thickness Gauge Meter Tester adapted to all kinds of materials which are good conductors of ultrasonic waves, such as metals (steel, cast iron, aluminum, copper etc.), plastic, ceramics, composites, epoxies, glass etc.
Features
- High quality and precision
- With 2 probes (Standard probe and Angle probe)
- Integrated with a 4mm calibration block
- Two display units: mm and inch
- With coupling state indication
- Measuring sound velocity
- Software for PC connection
Technical Specifications
| Measuring Range | 0.75 in to 13.7 in (0.75 mm to 350 mm) |
| Resolution | 0.01 in (0.01 mm) |
| Accuracy | ±(0.5%H+0.01) H refers to the thickness of testing piece |
| Velocity Range | 100 in to 999 in/s (1000 to 99999 m/s) |
| Velocity Measurement | √ |
| Storage | 2000 Groups |
| Shell | Plastic |
| Operating Temperature | 14 °F to 140 °F (-10 ℃ to 60 ℃) |
| Dampness | 20% to 90% |
| Dimensions | 4.61 in X 3.07 in X 1.3 in (163 mm x 78 mm x 33 mm) |
| Power Supply | 2 X AA |
| Weight | 0.44 lb (200 g) |
