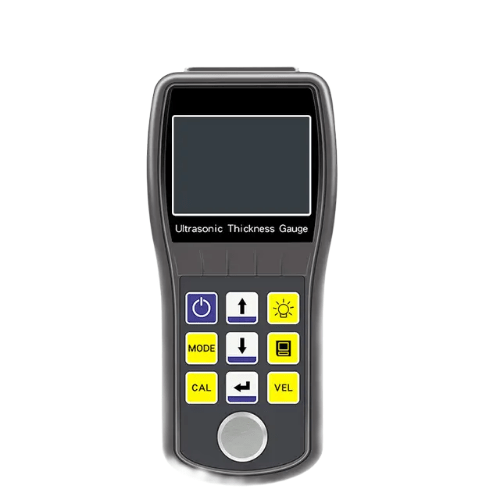

Acoustic Testing Pro Ultrasonic Thickness Gauge
This Ultrasonic Thickness Gauge has 0.02 in to 1.37 in measuring range, measurement frequency of 7.5 MHz and contact temperature of 50 °F to 140 °F.

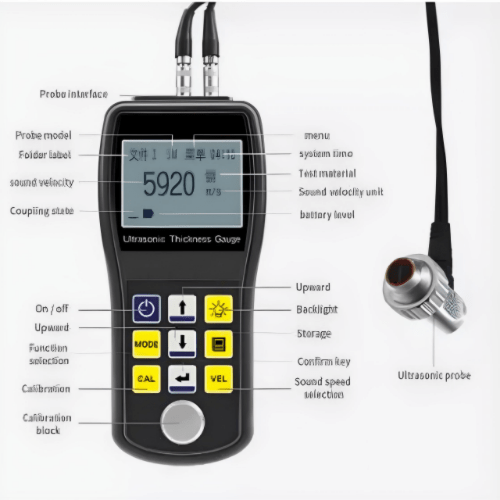

Features
- Portable and easy to carry
- Multi-functional
- Clear display on large screen
- Intelligent probes which can used widely
- Metal probe interfacePower supply mode
Technical Specifications
| Measuring range | 0.02 in to 1.37 in (0.75 mm to 35mm) |
| Measurement error (< 10mm) | 0.001 in (-+0.04 mm) |
| Measurement error (≥10mm} | -+0.4% H mm |
| Measurement frequency | 7.5 MHz |
| Probe diameter | 0.23 in (6 mm) |
| Contact temperature | 50 °F to 140 °F (10 °C to 60 °C) |
| Scope of application | Pipe with diameter >0.39 in (10 mm) |
| Probe Type | 7 m micro diameter probe |
