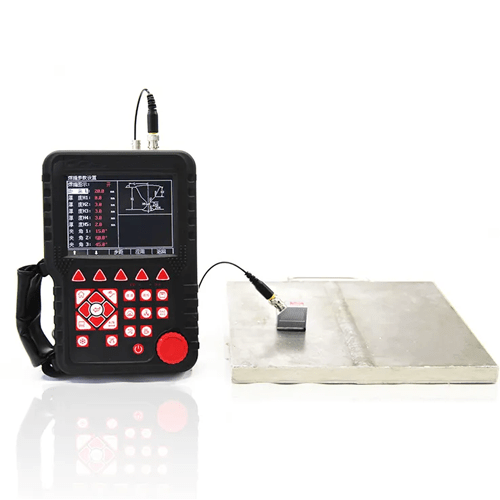

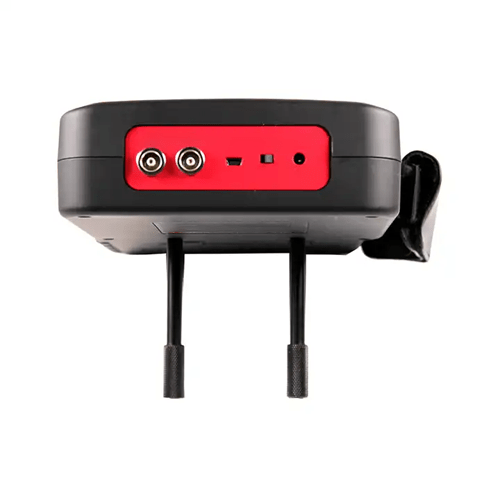

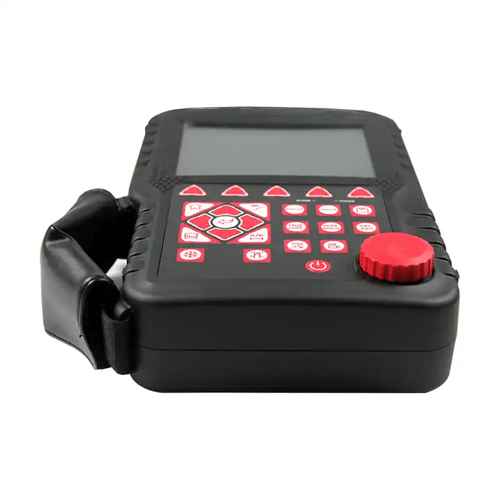

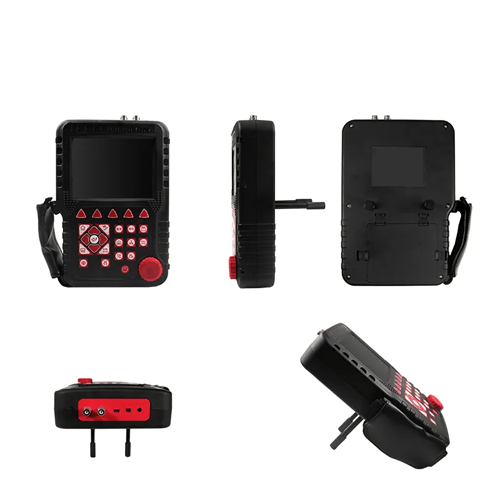

Acoustic Testing Pro Ultrasonic Crack & Flaw Detector
This ultrasonic crack & flaw detector has operating frequency of 0.5 Mhz to 10 Mhz, sensitivity margin of >60 dB and dynamic range of 36 dB.
Technical Specifications
| Detection range | 0 in to 236.2 in (0 mm to 6000 mm) |
| Gate alarm | Alarm buzzer and LED alarm |
| Sound speed range | 1000 m/s to 15000 m/s |
| Widening inside the door | Enlarging echo details for easy analysis of echoes |
| Detection range | 0 in to 236.2 in (0 mm to 6000 mm) |
| Gate alarm | Alarm buzzer and LED alarm |
| Sound speed range | 1000 m/s to 15000 m/s |
| Widening inside the door | Enlarging echo details for easy analysis of echoes |
| Detection range | 0 in to 236.2 in (0 mm to 6000 mm) |
| Dynamic range | ≥36 dB |
| Operating frequency | 0.5 MHz to 10 MHz |
| Waveform Freeze | Freezes the waveform displayed on the screen for defect analysis |
| Vertical linearity error | ≤3.0% |
| Surface correction | Display circumferential position and depth in real time |
| Horizontal linearity error | ≤0.2% |
| Sensitivity margin | >60 dB |
| Pulse amplitude | 200 V, 300 V, 400 V, 500 V, 600 V grading selection |
| Crack sounding | Automatic measurement, Calculation of crack height |
| Pulse width | Continuously adjustable within (30 ns to 510 ns |
| Weld illustration | Visual display of weld map and defect location |
| Band range | 0.5 Mhz to 10 MHz |
| Working time | >10 hrs |
| Screen resolution | 320 pixels x 240 pixels |
| Storage function | 16 GB memory card |
| Dimensions | 11.0 in x 8.6 in x 2.7 in (280 mm x 220 mm × 70 m) |
| Continuous record | 2 hrs |
| Number of channels | 1000 |
| Probe damping | 68 Ω, 100 Ω, 150 Ω, 500 Ω |
| Echo coding | 1 to 6 echo display areas |
| Battery module | High capacity lithium battery, Online charging |
