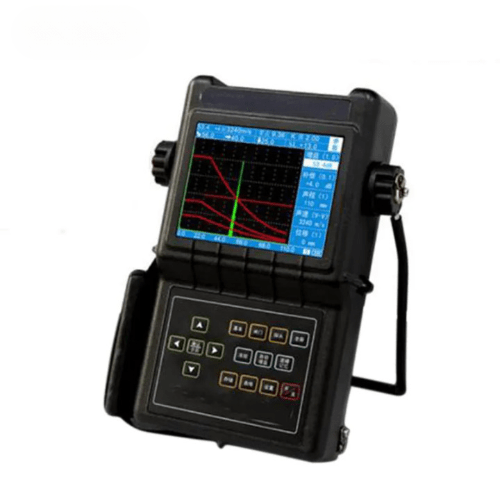

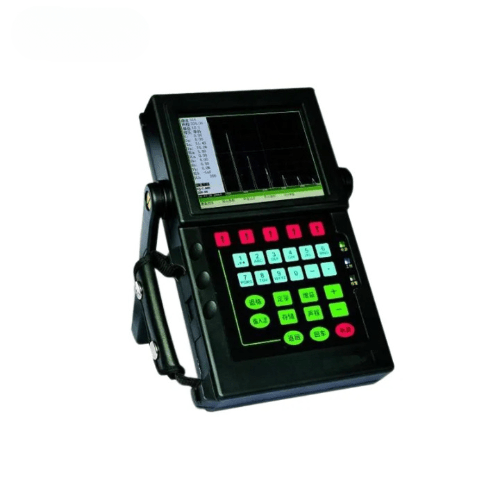

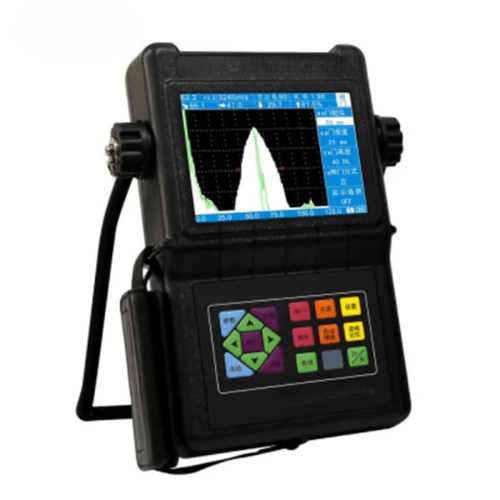

Acoustic Testing Pro Ultrasonic Crack Detector
Acoustic Testing Pro ultrasonic crack detector can detect internal defects (such as cracks, inclusions, porosity, etc.) and can automatically locate, evaluate and diagnose.
Features
- Automatic test probe zero velocity and K values
- Automatic production of DAC curve
- Automatic display of flaw echo position level, depth, distance and value
- Automatic shutter sound and light alarm adjustable door position and width
- Large capacity storage with space for 5000 testing data, data retention
- Long working hours with efficient lithium battery, providing over six hours
- Channel password protection to prevent unauthorized modification
- Built in communications software for direct connection to a computer
- Two-way communication allowing users to edit their inspection report format
Technical Specifications
| Gain Range | 0 dB to 120 dB, 0.1 dB, 2.0 dB, 6.0 dB Stepping |
| Frequency Range | 0.4 MHz to 20.0 MHz |
| Sensitivity Margin | >62 dB |
| Resolution | >40 dB |
| Dynamic Range | >32 dB |
| CUI Linear | <3% |
| Pulsar | Variable pulse generator |
| Work Mode | Single / Dual Penetrate |
| Damping | 50 Ω / 100 Ω / 400 Ω automatically match |
| Detection Method | Half wave / Radiofrequency |
| Suppression | 0% to 99% linear inhibition |
| The Charger | 220 V to 240 V AC input |
| Operating Voltage | 7.4 V to 0.3 V |
| Display Ambient Temperature | -4 °F to 122 °F (-20 °C to 50 °C) |
| Detection Range | 0.01 in to 236.22 in (0.5 mm to 6000 mm) |
| Size | 8.46 in x 6.88 in x 1.29 in (215 mm x 175 mm x 33 mm) |
| Weight | 2.20 Ib (1 kg) |
