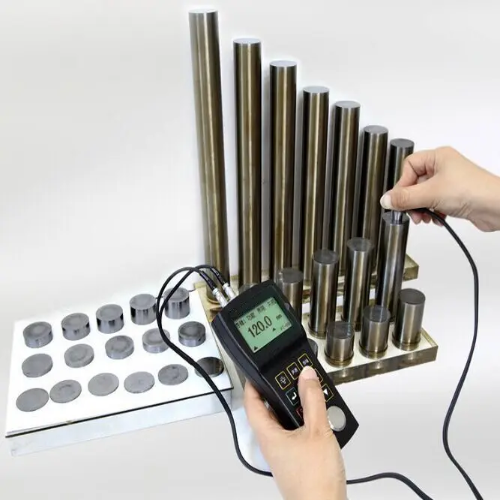

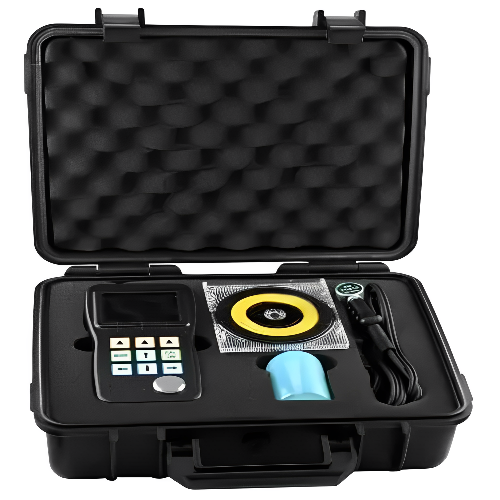

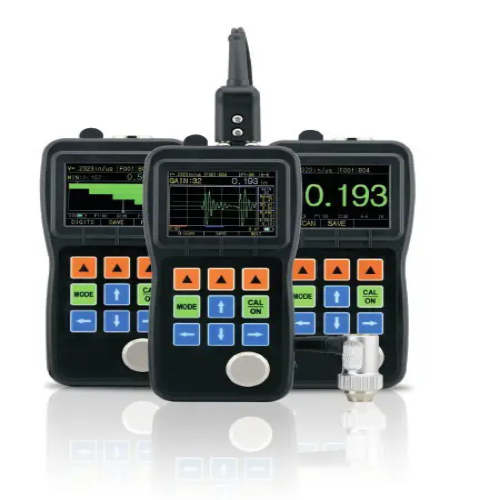

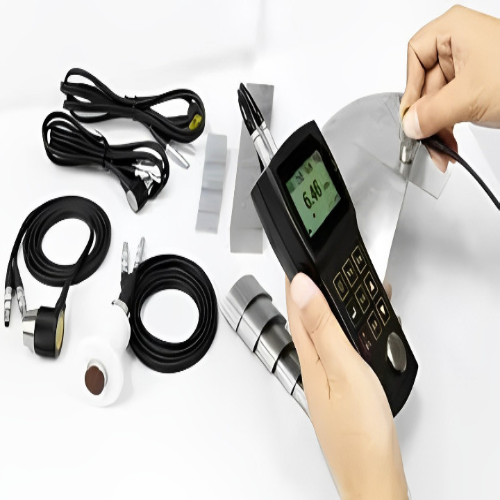

Acoustic Testing Pro Ultrasonic Coating Thickness Gauge
This Ultrasonic Coating Thickness Gauge has power required of 2 AA battery, operating time of 40 hours, and operating temperature +10°F to 120°F.
Features
- Color Display
- Live A-Scan
- Time-based B-Scan
- Control of Gain, Blanking, Gate, Range, Delay, RF and Rectify Modes
- Echo-Echo Mode (Thru Paint & Coatings)
- Data Logger
- Data View Software
Technical Specifications
| Display Type | 2.4″ color OLED, 320 x 240 pixels, contrast 10,000:1 |
| Operating Principle | Pulse echo with dual element transducers |
| Measuring Range | 0.02 to 20.00 in (0.50 mm to 508 mm) , depending on material, probe and surface condition |
| Measuring Resolution | selectable 0.001 in, 0.01 in (Selectable 0.01 mm, 0.1 mm) |
| Units | Inch or Millimeter |
| Rectify Modes | RF+, RF-, HALF+, HALF-, FULL |
| Display Mode | Normal, Minimum / Maximum capture, DIFF/RR%, A-Scan, B-Scan |
| V-Path Correction | Automatic |
| Update Rate | Selectable 4 Hz, 8 Hz, 16 Hz |
| Material Velocity Range | 0.0197 in/us to 0.3937 in/us (500 m/s to 9999 m/s) |
| Languages | English |
| Alarm Settings | Minimum and Maximum alarms. Range of 0.010 in to 20.00 in (0.25 mm to 508 mm). Dynamic waveform color change on alarm |
| Power Requirements | 2 AA size batteries |
| Operating Time | Approximately 40 hours |
| Instrument Shut-off | Selectable ALWAYS ON or AUTO OFF after 5, 10, 20 minutes of inactivity |
| Operating Temperature | +10 °F to +120 °F (-10 °C to +50 °C) |
| Weight | 0.62 lb (280 g) including batteries |
