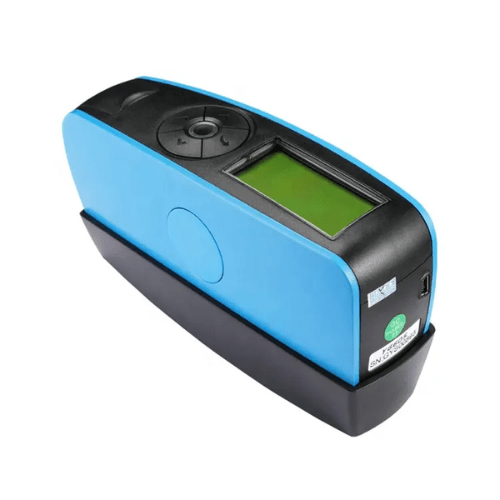

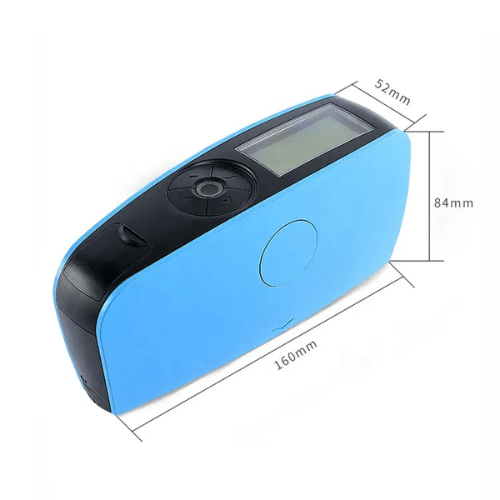

Acoustic Testing Pro Three Angle Handheld Gloss Meter
Acoustic Testing Pro Gloss Meter, also called a glossiness meter, is used to determine the surface gloss of the material instrument.
Overview
Acoustic Testing Pro Gloss Meter, also called a glossiness meter, is used to determine the surface gloss of the material instrument. The RT-420A gloss meter references the international standard 1502813 and the Chinese national standard GB/T9754 design and manufacture. Meet JJG696 first or second-class work gloss meter requirements.
Features
- Lens transforms light into a parallel source
- Slightly convergent light beam targets test plate coating
- Lens converges reflected light to chosen site for absorption
Technical Specifications
| Measure Angle | 20 ° or 60 ° or 85 ° |
| Measure Range | 20 °: 0 GU to 2000 GU, 60 °: 0 GU to 1000 GU, 85 °: 0 GU to 160 GU |
| Accuracy | 0.1 GU |
| Measurement Mode | Basic Mode, Statistical Mode, Continuous Mode, QC Mode |
| Repeatability | 0 GU to 100 GU: ±0.2 GU; 100 GU to 2000 GU: ±0.2 % GU |
| Standard | Meet JJG 696 class 1 working gloss meter |
| Auto Power Off Time | 30 s to 120 s available |
| Calibration | Power-on auto-check and calibration or manual calibration |
| Optional Accessory | Microprinted |
| Languages | Simplified Chinese, English, Traditional Chinese |
| Storage Data | 35,000 entries (15,000 in basic and continuous mode, 10,000 in QM mode, 10,000 in statistical mode) |
| Display Screen | 2.3-in Black and white display |

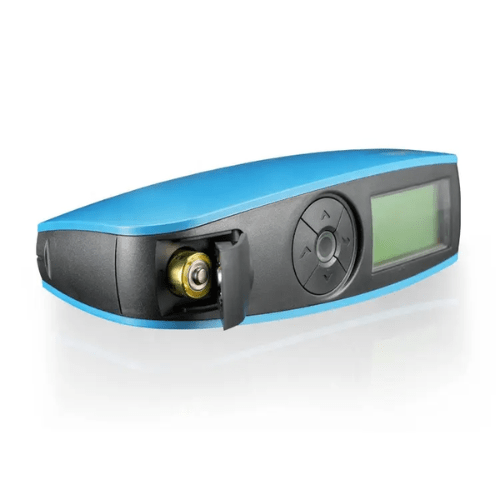

| Power | 1 x 5 battery (AA alkaline or Ni-MH rechargeable battery), Can be measured more than 10,000 times; or use the USB port |
| Optional Accessory | Microprinted |
| Measuring Time | 0.5 sec/each angle |
