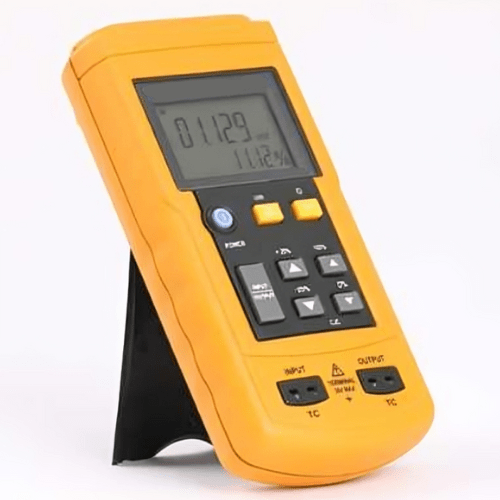

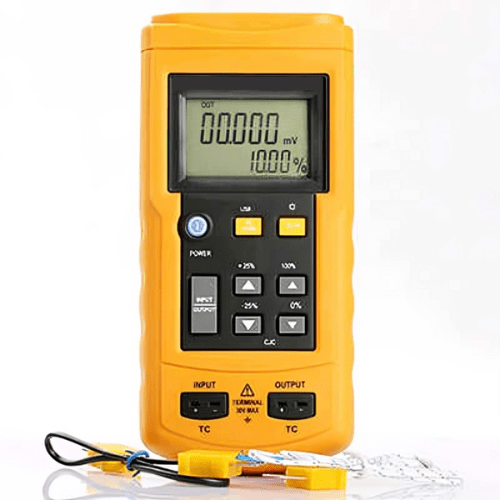

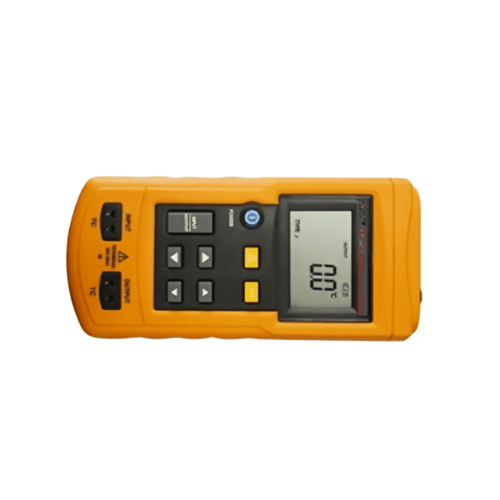

Acoustic Testing Pro Temperature Signal Process Calibrator
Acoustic Testing Pro temperature signal process calibrator is tool for calibrating RTD transmitters, including the most pulsed transmitters.
Overview
Acoustic Testing Pro temperature signal process calibrator is tool for calibrating RTD transmitters, including the most pulsed transmitters. It simulates and measures 7 different types of RTDs in units of °C or °F and resistance in unit of ohms. It can simulate and measure resistance simultaneously.
Features
- Measure temperature from RTD output
- Simulate RTD output
- Operatable with 7 types of RTDs
- Measure additional RTDs using Ohm’s measurement function
- Simulate additional RTDs using Ohm’s source function
- °F or °C selectable
- Manuals operate output range 0% to 100%
- ±25%step output
- Back light
- Rechargeable battery (large capacity lithium battery)
Technical Specifications
| Range | 0 Ω to 3200 Ω |
| Resolution | 0.1 Ω |
| Accuracy | 0.1 Ω to 1 Ω |
| Single package size | 11.81 in x 11.81 in x 11.81 in (300 mm x 300 mm x 300 mm) |
| Single gross weight | 6.61 lb (3 kg) |
