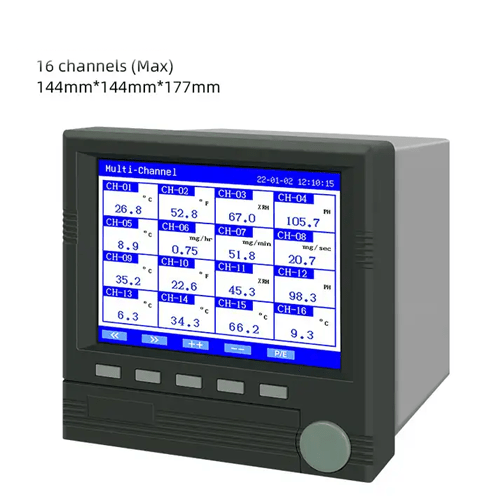

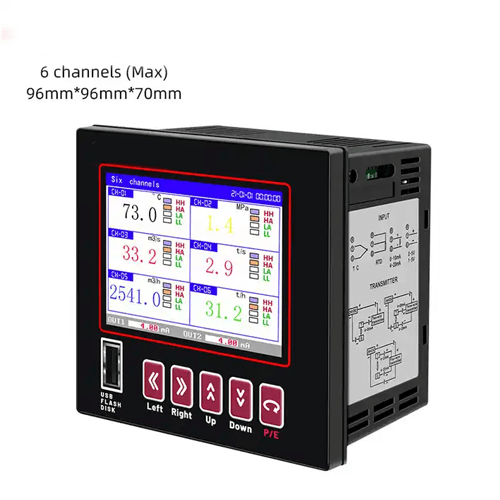

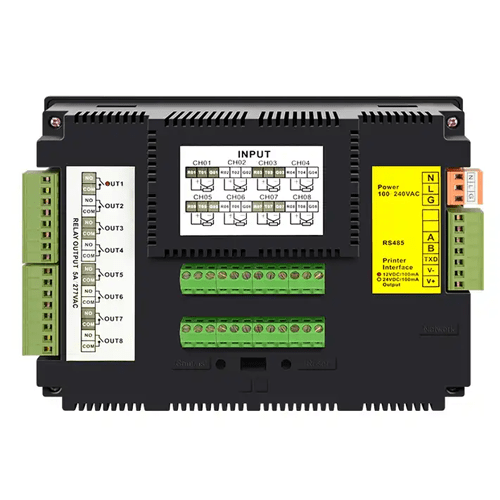

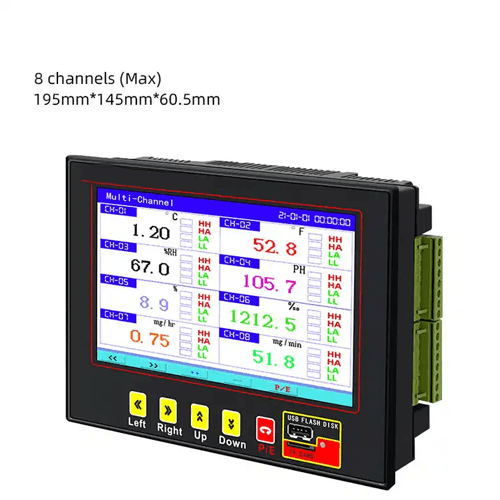

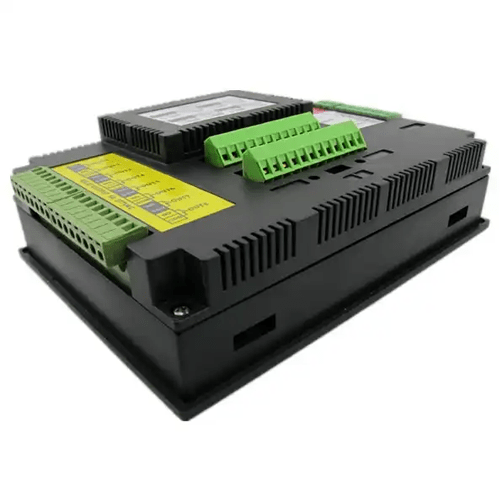

Acoustic Testing Pro Temperature Controller Data Logger
Acoustic Testing Pro Temperature Controller Data Logger is completely isolated universal input, such as thermocouple, thermal resistance, current voltage, temperature, liquid level, pressure, voltage, current, flow, vibration frequency input; Adopt modularized structure to output alarm, sensor auxiliary power supply, forwarding, printing, communication and other functions.
Overview
Acoustic Testing Pro Temperature Controller Data Logger is completely isolated universal input, such as thermocouple, thermal resistance, current voltage, temperature, liquid level, pressure, voltage, current, flow, vibration frequency input; Adopt modularized structure to output alarm, sensor auxiliary power supply, forwarding, printing, communication and other functions. Measurement data can be displayed in a variety of types, such as bar chart graphic display, real-time trend, historical trend memory, real-time circular chart, historical circular chart memory, alarm state display, etc.
Technical Specification
| Sampling Rate | ≤1 s |
| Temperature Shift Coefficient | Standard value 50 PPM |
| CMR Ratio | 85 dB to 110 dB |
| Input Independence | 0 V DC to 5 V DC and 1 V DC to 5 V DC input 500 K Ω |
| Isolation | Isolated voltage between channels and ground 1000 V |
| Input Error Action | Max, Min, Hold |
| Power supply | VAC 100 V AC to 240 V AC, frequency 47 Hz to 63 Hz, max. power consumption 5 V A |
| Aux. power supply | 24 V DC |
| Processor | 32 bits |
| Hardware guider | CPU inner integration for long time, stable and safe operation |
| Display | 7.0 in, 320 pixels x 240 pixexls TFT, Color LCD display |
| Relative humidity | 10 % to 85 % |
| Net Weight | 2.20 lb (1 kg) |
| Working Temperature | 32 °F to 122 °F (0 ℃ to 50 ℃) |
| Size | 7.67 in x 5.70 in x 2.38 in (195 mm x 145 mm x 60.5 mm) |
