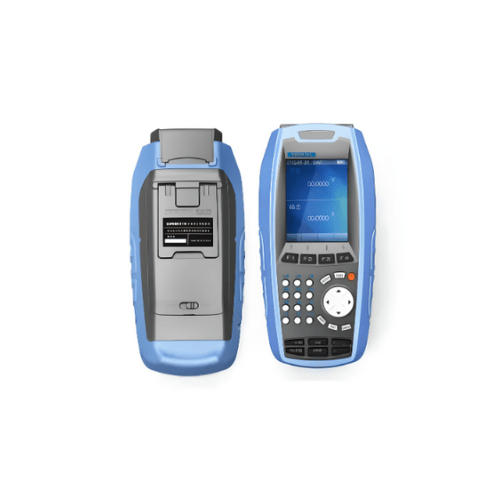

Acoustic Testing Pro Temperature Calibrator
Acoustic Testing Pro temperature calibrator intelligent process calibrator has powerful function.
Overview
Acoustic Testing Pro temperature calibrator intelligent process calibrator has powerful function. It meets the requirements of calibration, maintenance, and repair of thermal instruments. It is the ideal instruments for both filed and calibration tasks.
Features
- Measure voltage, current, resistance, frequency, pulse, switch (on and off)
- temperature, which are mutual interference
- Simulate 13 kinds of thermocouple and 11 kinds of RTD measure and output
- DC 24 V power supply isolated from measurement and output
- Build in HART Communication
- External SPMKSDP Pressure Module as option
- AC or DC power supply: Battery power is recommended for better performance
Technical specifications
| Current Measure Range | -30 mA to 30 mA |
| Loop Continuity | 0 to 2000 |
| Voltage Measure Range | -60 V to 60 V |
| Current source range | 0 mA to 22 mA |
| Voltage source range | 0 V to12 V |
| Loop continuity | 0 to 2000 |
| Weight | 3.30 lb (1.5 kg) |
