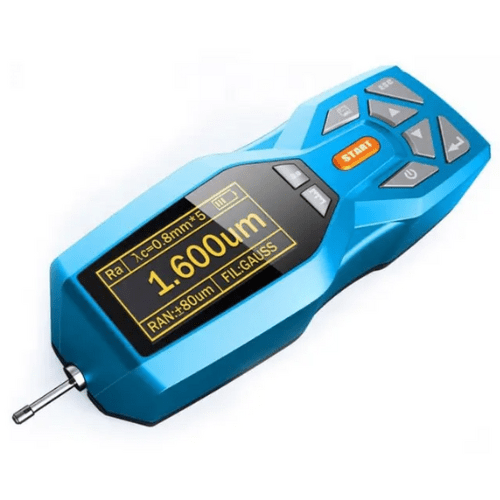

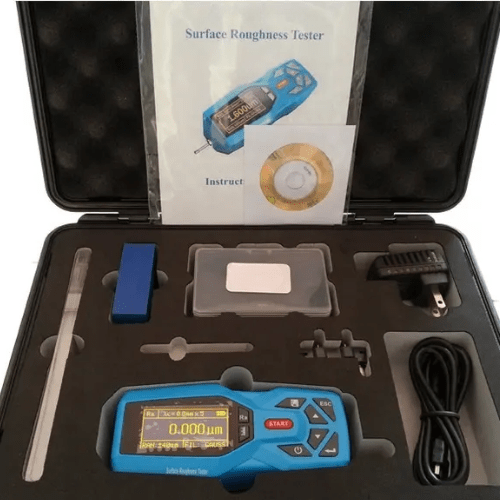

Acoustic Testing Pro Surface Roughness Testing Instrument
The Acoustic Testing Pro Surface Roughness Testing Instrument is a high-precision surface roughness tester.
Overview
The Acoustic Testing Pro Surface Roughness Testing Instrument is a high-precision surface roughness tester. It uses an inductive sensor to measure roughness parameters Ra, Rz, and Rq on various surfaces, including plane, bevel, cylindrical, curved surfaces, small holes, grooves, and axles. The device features a 4-digit LCD with blue backlight, USB and Bluetooth data output, and can store up to 100 groups of data. It’s lightweight and portable, making it ideal for on-site inspections of large workpieces and production lines. This tester is a valuable tool for quality control in manufacturing, machining, and testing departments.
Features
- Inductive sensor for precise roughness measurements
- Measures diverse surfaces, including curved and small areas
- 4-digit LCD with blue backlight for clear display
- USB and Bluetooth connectivity options
- Stores up to 100 data groups
Technical Specifications
| 20 Testing Parameters | Ra, Rz=Ry (JIS), Rq, Rt=Rmax, Rp, Rv, R3z, R3y, RzJIS, Rsk, Rku, Rsm, Rmr, Rx, RPc, Rk, Rpk, Rvk, Mr1, Mr2; |
| Measuring Range | Ra: 0.005 to 16.000μm Rz: 0.02 to 160.00μm |
| Sample Length | 0.25, 0.80, 2.50mm |
| Evaluation Length | 1 L to 5 L |
| Maximum Drive Stroke | (17.5mm) 0.7inch |
| Indication Accuracy | 0.001μm |
| Indication Error | ≤ ± 10% |
| Variability | < 6% |
| Data Storage | 100 groups |
| Power | Rechargeable Li-battery |
| Relative Humidity | < 90% |
| Working Temperature | -4°F to 104°F (-20°C to 40°C) |
| Size | 6.22 in x 2.5 in x 1.81 in (158 mm x 63.5 mm x 46 mm) |
