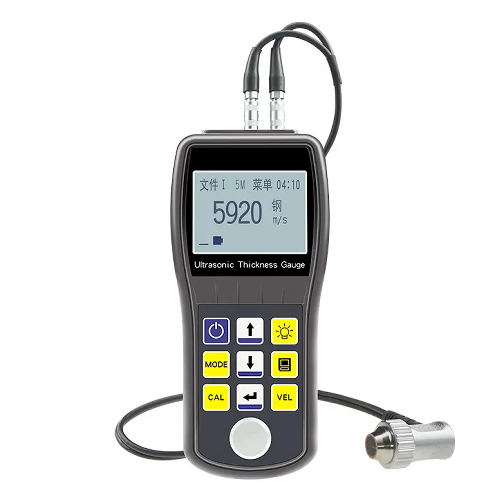

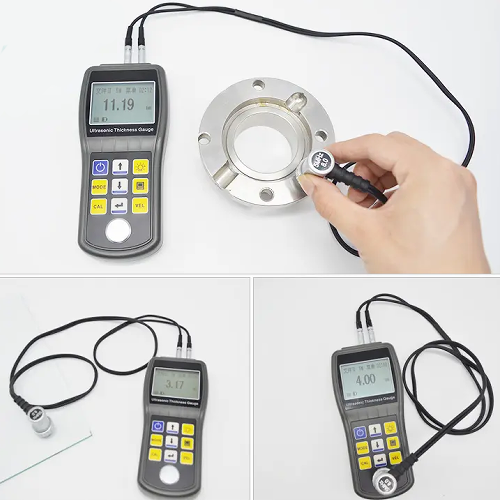

Acoustic Testing Pro Stainless Steel Ultrasonic Thickness Gauge
This Stainless Steel Ultrasonic Thickness Gauge has measuring range of 0.04 in to 9.84 in, measuring frequency of 5 MHz and batteries of 3 V x 1.5 V.
Technical Specification
| Probe Type | 5 M Standard Probe |
| Measuring Range | 0.04 in to 9.84 in (0.1 cm to 25 cm) |
| Error (<10 mm) | ± 0.04 mm |
| Error (≥10 mm) | ± 0.4 % mm |
| Measurement Frequency | 5 MHz |
| Display Accuracy | 0.01 mm |
| Measurement period | 4 times / second |
| Sound velocity range | 1000 m/s to 9999 m/s |
| Display | FSTN LCD Display, With cold light source illumination display |
| Working voltage | 3 V x 1.5 V (No. 7 Batteries) |
| Working hours | 50 hours (without backlight) |
| Language | Chinese / English / Spanish |
| Data Storage | 500 groups of measurement results, including measurement time and sound velocity information |
| Display Content | Thickness value, coupling state, electric quantity state calibration state, sound velocity, time, etc. |

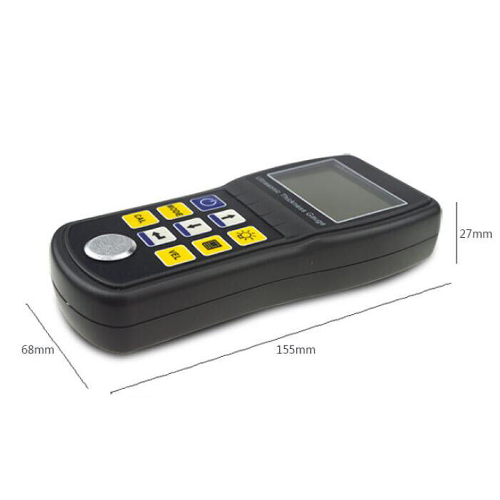

| Overall Dimension | 6.10 in x 2.67 in x 1.06 in (155 mm x 68 mm x 27 mm) |
