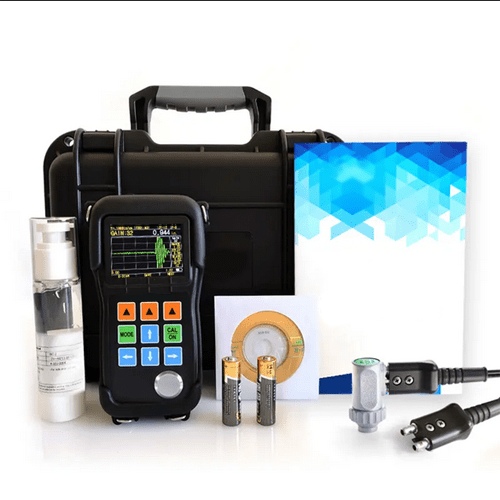

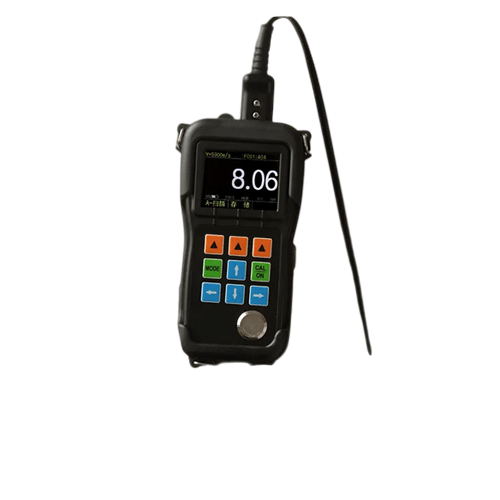

Acoustic Testing Pro Scan Ultrasonic Thickness Gauge
This scan ultrasonic thickness gauge has a display type of 2.4-inch colour display LCD screen, update rate of selectable 4 Hz, 8 Hz, 16 Hz and measuring range of 0.19 in to 20 in.
Technical Specifications
| Measuring Range | Metal 0.19 in to 20 in (0.5 mm to 508 mm) |
| Resolution | Selectable 0.00039 in, 0.0039 in (0.01 mm, 0.1 mm) |
| Display Type | 2.4 in (320 x 240 dot matrix) colour display LCD screen |
| Update Rate | Selectable 4 Hz, 8 Hz, 16 Hz |
| Power Supply | Two 1.5 V AA batteries, 24 hours standby time |
| Function | Thru-coat (UM-5D/UM-5DL) or large data storage with USB cable (UM-5DL) |
