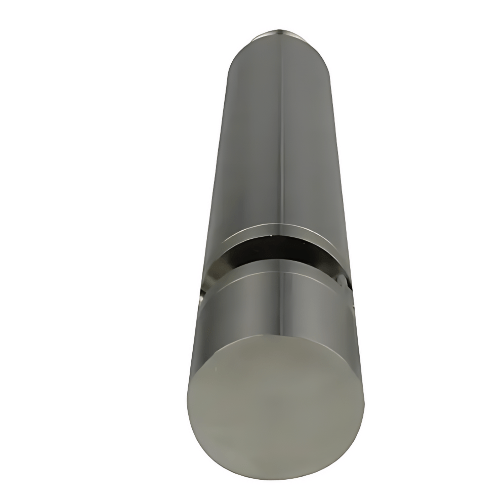

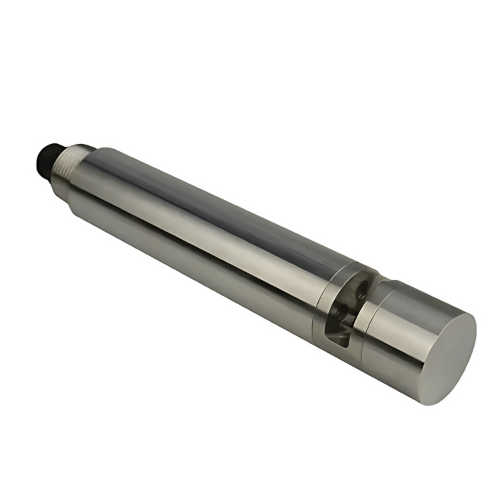

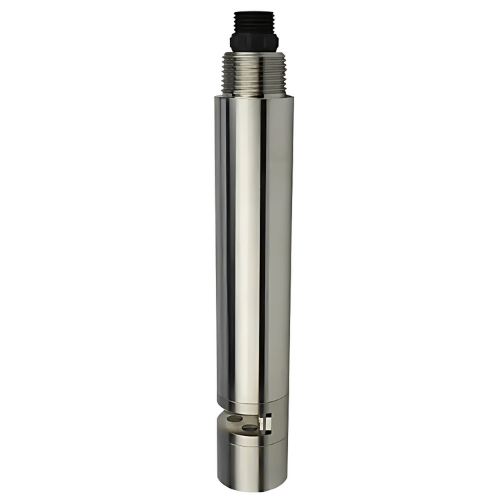

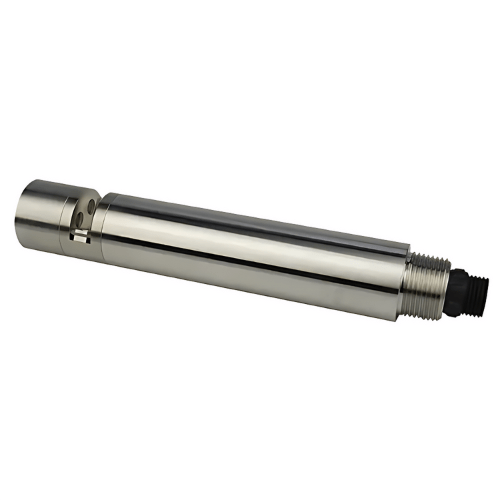

Acoustic Testing Pro Quality Analyzer Temperature Sensor
This quality analyzer temperature sensor has0 NTU to 100 NTU of range, 5 ℃ to 65 ℃ of temperature, and 0.1NTU of resolution.
Technical Specifications
| Turbidity range | 0 NTU to 100 NTU |
| Turbidity accuracy | ±5% FS |
| Turbidity resolution | 0.1 NTU |
| Calibration method | Two-point calibration |
| Output method | RS-485 bus, Modbus/RTU protocol |
| Power supply | 12 V DC ±10% |
| Power consumption | <0.5 W |
| Working conditions | (0 ℃ to 45 ℃)、<0.2 MPa |
| Storage temperature | (-5 ℃ to 65 ℃) |
| Protection level | IP68 |
| Installation method | Immersion installation |
| Cable length | 5 m, other lengths can be customized |
| Sensor housing material | 316L stainless steel |
