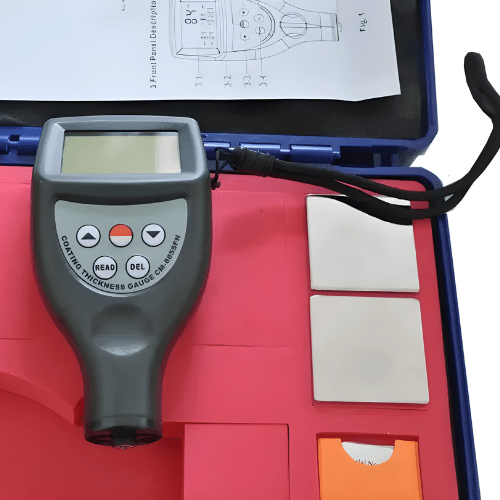

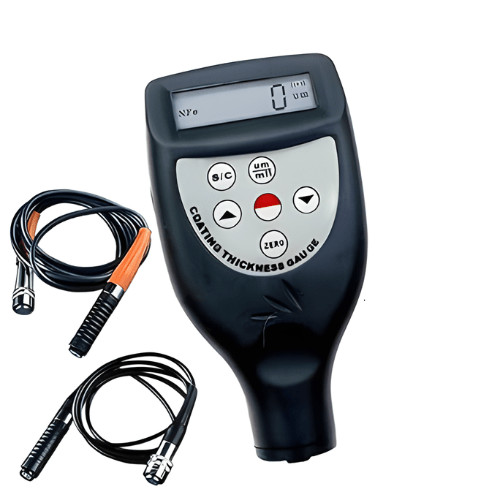

Acoustic Testing Pro Powder Coating Thickness Tester
Acoustic Testing Pro Powder coating thickness tester is highly accurate measurement device for the dry coating thickness and can be used even in harsh field conditions.
Overview
Acoustic Testing Pro Powder coating thickness tester is highly accurate measurement device for the dry coating thickness and can be used even in harsh field conditions.
Features
- Automatic substrate recognition.
- Manual or automatic shutdown.
- Two measurement mode: Single and Continuous
- Wide measuring range and high resolution.
- Metric/Imperial conversion.
- Digital backlit display gives exact reading with no guessing or errors.
- Can communicate with PC computer for statistics and printing by the optional cable.
- Can store 99 groups of measurements.
- Statistics are available.
Technical Specifications
| Measuring Range | 0 to 1000um/0 to 40mil |
| Operating Principle | Magnetic induction/eddy current (F/NF) |
| Resolution | 0.1 um (0 um to 99.9 um), 1 um (over 100um) |
| Accuracy | +/-1-3%n or 2.5 um |
| Min. Measuring Area | 0.24 in (6 mm) |
| Min. Sample Thickness | 0.01 in (0.3mm) |
| Battery Indicator | Low battery indicator |
| Metric/ Imperial | Convertible |
| Display | 4 digits, 10mm LCD |
| Battery | 4 x 1.5V AA(UM-3) battery (not included) |
| Packing | Protective Carrying Case with Shock absorbent contoured rubber inside |
| Auto Power Off | Yes |
| Automatic Calibration | (when no other metal substrate near the probe sensor upon switching on) |
