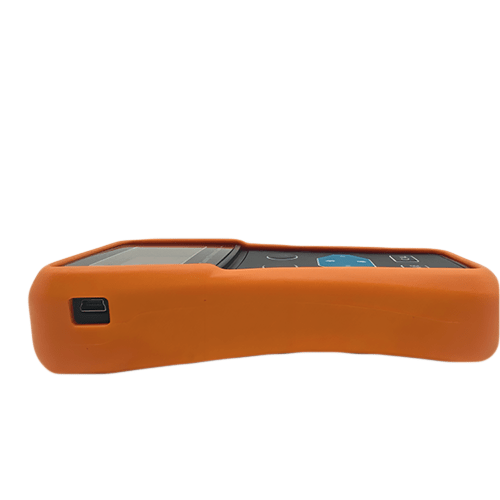

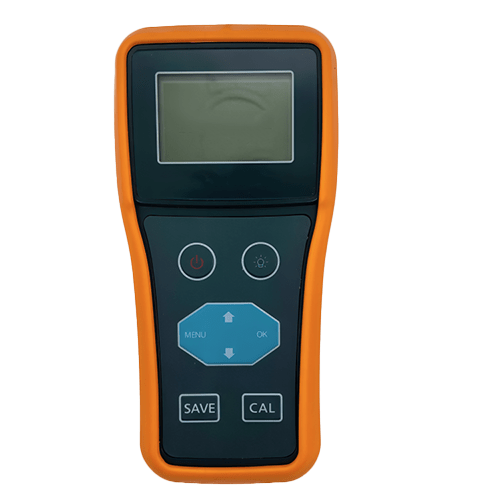

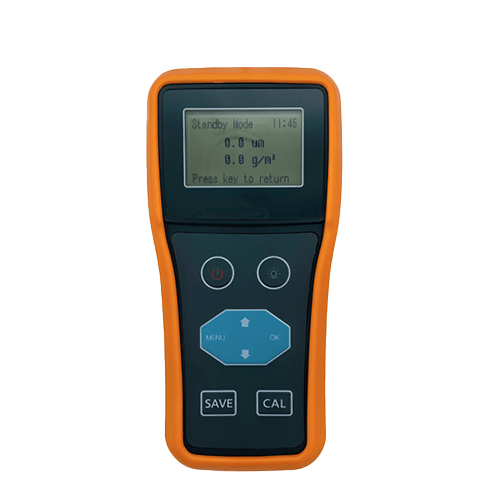

Acoustic Testing Pro Portable Zinc Coating Thickness and Weight Gauge
Acoustic Testing Pro Portable Zinc Coating Thickness and Weight Gauge is an enhanced portable coating thickness gauge which is designed for non-destructive, fast and precise coating thickness and weight measurement.
Overview
Acoustic Testing Pro Portable Zinc Coating Thickness and Weight Gauge is an enhanced portable coating thickness gauge which is designed for non-destructive, fast and precise coating thickness and weight measurement. The main applications lie in corrosion protection. It is ideal for manufacturers and their customers, for offices and specialist advisers, for paint shops and electroplaters, for the chemical, automobile, shipbuilding and aircraft industries and for light and heavy engineering.
Features
- Display thickness and weight measurements directly
- Precision chip with temperature compensation for accuracy
- Efficient filtering resists electromagnetic interference
- Mini-USB interface for communication
- Supports online measurement
- Host software is upgradable
Technical Specifications
| Measure Range | 0 um to 1500 um 0 um to 40 um, for Chromium on Copper |
| Resolution | 0.1 g/m 2, 0.1 um (0 um to 99.9 um), 1 um (100 um to 1500 um) |
| Power Supply | 3x AAA alkaline batteries for 100 hours usage (close backlight) |
| Min. Radius of Area | 0.19 in (5 mm) |
| Measuring Period | 3 times per second |
| Storage | 500 measurements, including time, probe type, density, etc. |
| Temperature | Usage: 14 °F to 122 °F (- 10°C to 50 °C), Store: -22 °F to 140 °F (- 30 °C to 60 °C) |
| Size | 5.90 in x 2.75 in x 1.18 in (150 mm x 70 mm x 30 mm) |
| Weight | 0.39 lb (180 g) |
