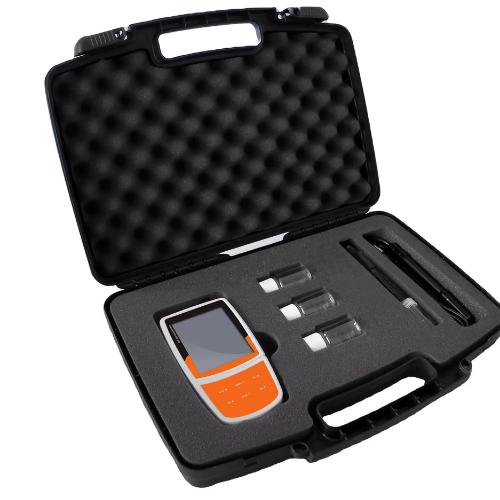

Acoustic Testing Pro Portable Water Quality Analyzer
The Portable water quality analyzer contains 5 measurement modes, it is suitable for measuring the conductivity, TDS, salinity, resistivity, DO.
Features
- Equipped with a backlit LCD
- 1 to 5 points push button calibration, automatically recognizes calibration solutions
- Selectable cell constant (K=0.1 or 1 or 10), TDS factor, linear and pure water compensations, seawater and practical salinity measurement modes
- 1 or 2 points calibration using air saturated water or zero oxygen solution
- Salinity and barometric pressure compensations ensure reliable DO measurements
- Automatic temperature compensation provides accurate reading over the entire range
- Calibration due alarm prompts user to calibrate the meter regularly
- Stability indicator shows when a measurement is recognized as stable
- Auto hold feature senses and locks the measurement endpoint
- Calibration report provides details for checking the electrode performance
- Battery indicator shows the remaining battery capacity
- Auto power off effectively conserves battery life
- Setup menu allows setting the 13 parameters
- Reset feature automatically resumes all settings back to factory default options
- Expanded memory stores and recalls up to 500 data sets
- Stored readings can be transferred into the computer by USB communication interface
- Multi mode power scheme ensures that use the meter smoothly
Technical Specifications
| Range | 0.01 to 20.00, 200.0, 2000 µS per cm, 20.00, 200.0 mS per cm |
| Accuracy | ± 0.5 % F.S |
| Resolution | 0.001, 0.01, 0.1, 1 |
| Calibration Points | 1 to 5 points |
| Calibration Solutions | 10 µS per cm, 84 µS per cm,1413 µS per cm,12.88 mS per cm, 111.8 mS per cm |
| Compensation Modes | Linear or Pure water |
| Cell Constant | K=0.1, 1, 10 or Custom |
| Range | 0 ppm to 10.00 ppm, 100.0 ppm, 1000 ppm, 10.00 ppt, 100.0 ppt (Max. 200 ppt) |
| Accuracy | ± 1 % F.S |
| Resolution | 0.01, 0.1, 1 |
| TDS Factor Salinity |
0.1 to 1.0 (Default 0.5) |
| Range | 0.00 ppt to 80.00 ppt, 0.00 psu to 42.00 psu |
| Accuracy | ± 1 % F.S |
| Resolution | 0.01 |
| Measurement Modes Resistivity |
Practical salinity (psu) or Natural seawater (ppt) |
| Range | 0.00 MΩ to 20.00 MΩ |
| Accuracy | ± 1 % F.S |
| Resolution | 0.01, 0.1, 1 |
| Dissolved Oxygen DO Range |
0.00 mg per l to 20.00 mg per l |
| Accuracy | ± 0.2 mg per l |
| Resolution | 0.1, 0.01 mg per l, selectable |
| % Saturation of Oxygen | 0.0 % to 200.0 % |
| Accuracy | ± 2.0 % |
| Resolution | 0.1, 1 % |
| Calibration Points | 1 or 2 points |
| Pressure Correction | 60.0 kPa to 112.5 kPa, 450 mmHg to 850 mmHg |
| Salinity Correction | 0 g per l to 50 g per l |
| Calibration Points | 1 point |
| Calibration Range | Measured value 50 °F (± 10 °C) |
| Range | 0 °C to 105 °C, 32 °F to 221 °F |
| Accuracy | 0.5 °F (± 0.5 °C) |
| Resolution | 0.1 °C, 0.1 °F |
| Temperature Coefficient | 0.0 % or °C to 10.0 % or °C |
| Reference Temperature | 68 °F or 77 °F (20 °C or 25 °C) |
