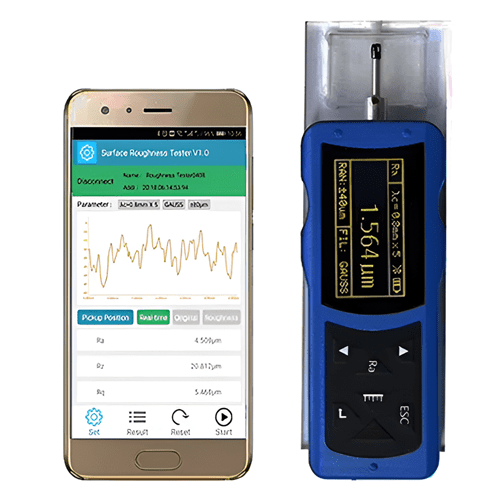

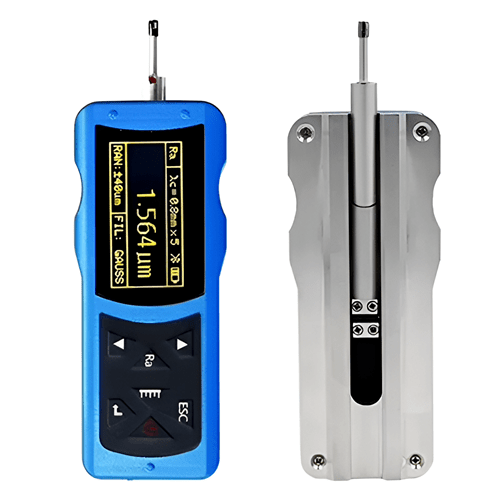

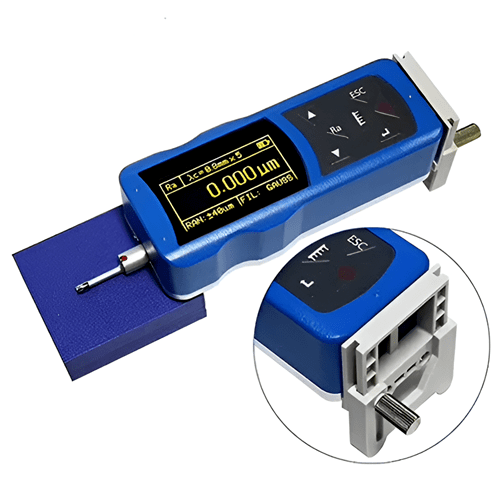

Acoustic Testing Pro Portable Surface Roughness Tester

Name: Acoustic Testing Pro Portable Surface Roughness Tester - Acoustic Testing Pro
SKU: ACTPHSRT-206

This Portable Surface roughness tester has a 900 B cone angle, accuracy of No more than ‡ 10%, and repeatability No more than 6%.

SKU: ACTPHSRT-206 Category: Surface Roughness Tools

Technical Specifications

Principle	The displacement differential inductance
Stylus	Natural Diamond, 900B cone angle, Sum tip radius
Force	< 4mN Ruby
Skid	Longitudinal radius 40 mm
Accuracy	No more than ‡ 10%
Repeatability	No more than 6%
Power Supply	Built-in 3.7V Lithium-ion battery, Charger: DC 5V, 800mA / 3hour
Working Time	More than 20 hours
Outline Dimension LXWXH	(141 mm x 55 mm x 40 mm) 5.5512 in × 2.1654 in × 1.5748 in
Weight	About (400 g) 0.88 lb
