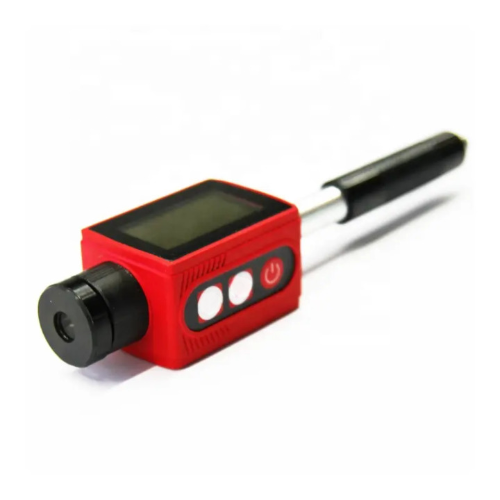

Acoustic Testing Pro Portable Pen Type Hardness Tester
Acoustic Testing Pro portable pen type hardness tester sets with the leeb hardness tester measuring principle, the pen-type hardness tester can do test easily and quickly to various merallic material, it can show the hardness measuring value immediately and can switch to other scales freely.
Overview
Acoustic Testing Pro portable pen type hardness tester sets with the leeb hardness tester measuring principle, the pen-type hardness tester can do test easily and quickly to various merallic material, it can show the hardness measuring value immediately and can switch to other scales freely.
Features
- Electronic and electric loading, high precision sensor, with a unique closed-loop control system
- Can be calibrated according to standard hardness block or length scale
- The test force can be automatically corrected by standard dynamometer
- The hardness values of brinell, rock well and vickers can be converted
- Touch screen, easy to operate
- Automatic hardness conversion according to national standard /ASTM
- Set password protection setting parameters, more sample and test information
- U-disk of measurement data is saved in EXCEL format for easy editing and processing
Technical Specifications
| Hardness scale | HL. HB, HRB, HRC, HRA, HV, HS |
| Display | HD dox matrix LCD and LED backlight |
| Memory | 500 group (32 every group) |
| Work voltage | 3.6 V (integrated lithium battery and rechargeable circuit) |
| Brand | SUNPOC |
| Product Name | Hardness Testers |
| Hardness Scale | HV1 |
| Testing Range | 150 HLD to 960 HLD |
| Application | Metal Hardness Testing |
| Display | LCD |
| Communication interface | USB 1.1 port |
| Working period | About 200 hrs (without using backlight) |
| Dimensions | 5.51 in x 2.32 in x 1.18 in (140 mm x 60 mm x 30 mm) |
| Weight | 3.31 lb (1.5 kg) |
