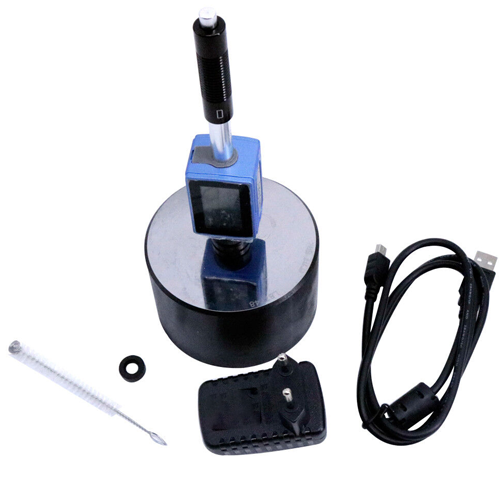

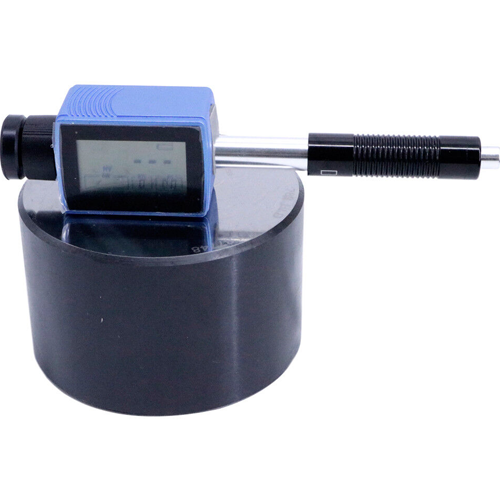

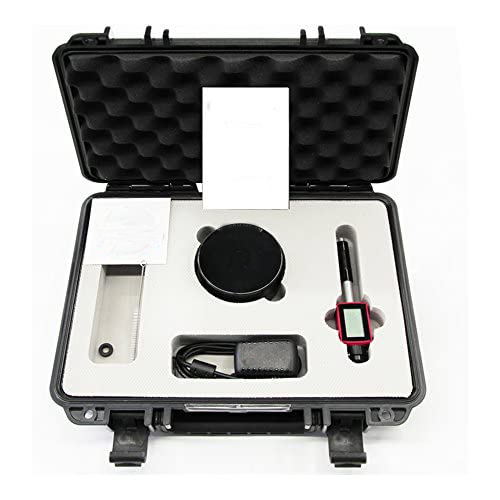

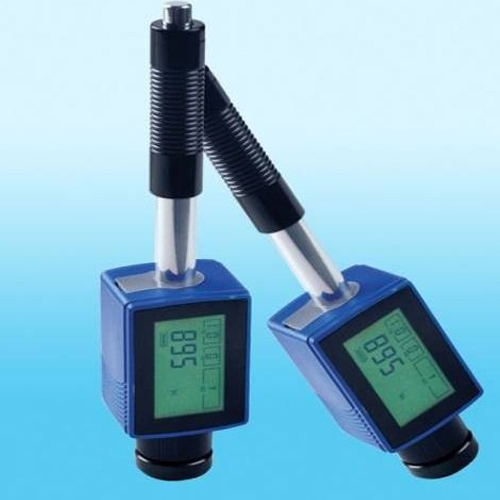

Acoustic Testing Pro Portable Pen Type Hardness Tester
Acoustic Testing Pro portable pen type hardness tester sets with the leeb hardness tester measuring principle, the pen-type hardness tester can do test easily and quickly to various merallic material, it can show the hardness measuring value immediately and can switch to other scales freely
Features
- Electronic and electric loading, high precision sensor, with a unique closed-loop control system.
- Can be calibrated according to standard hardness block or length scale
- The test force can be automatically corrected by standard dynamometer
- The hardness values of brinell, rock well and vickers can be converted
- Touch screen, easy to operate
- Automatic hardness conversion according to national standard /ASTM
- Set password protection setting parameters, more sample and test information
- U-disk of measurement data is saved in EXCEL format for easy editing and processing
Technical Specifications
| Hardness scale | HL. HB, HRB, HRC, HRA, HV, HS |
| Display | HD dox matrix LCD and LED backlight |
| Memory | 500 group (32 every group) |
| Work voltage | 3.6 V (integrated lithium battery and rechargeable circuit) |
| Brand | SUNPOC |
| Product Name | Hardness Testers |
| Hardness Scale | HV1 |
| Testing Range | 150 HLD to 960 HLD |
| Application | Metal Hardness Testing |
| Display | LCD |
| Communication interface | USB 1.1 port |
| Working period | About 200 hrs (without using backlight) |
| Dimensions | 5.51 in x 2.32 in x 1.18 in (140 mm x 60 mm x 30 mm) |
| Weight | 3.31 lb (1500 g) |
