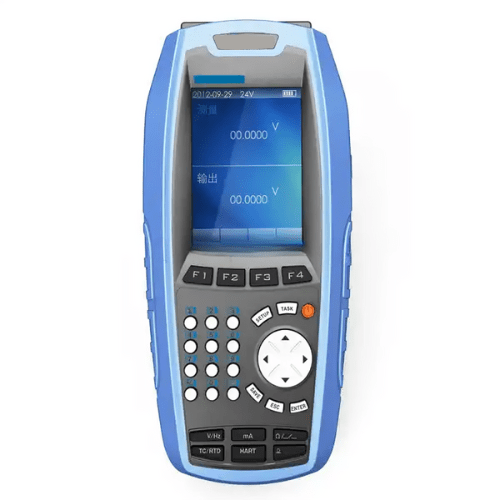

Acoustic Testing Pro Portable Measuring Temperature Calibrator
Acoustic Testing Pro portable measuring temperature calibrator is a process tool for measuring, sourcing and simulating loop current, mV or V, loop integrity, and perform switch testing.
Overview
Acoustic Testing Pro portable measuring temperature calibrator is a process tool for measuring, sourcing and simulating loop current, mV or V, loop integrity, and perform switch testing. Its smart phone-like menu and interface makes it simple and easy to use. It is an idea for calibrating, maintaining, and troubleshooting various loop devices in the field.
Features
- Measuring temperature electric signals calibrator
- Measuring and sourcing loop current
- Can measure mV and V independently
- 24 V loop power supply
- With independent measuring and sourcing function
- Documenting storage
- Automated procedure capability
- Easy to operate
Technical Specifications
| Current | -30 mA to 30 mA |
| Voltage | -60 V to 60 V |
| mV | -200 mV to 200 |
| Loop Continuity | 0 Ω to 2000 Ω |
| Limit Switch | If the switch has detective voltage, its range is +3 V to +24 V |
| Current | 0 mA to 22 mA |
| Voltage | 0 V to 12V |
| mV | 0 mV to 200 mV |
| DC24V | 24.0 V ±0.5 V |
