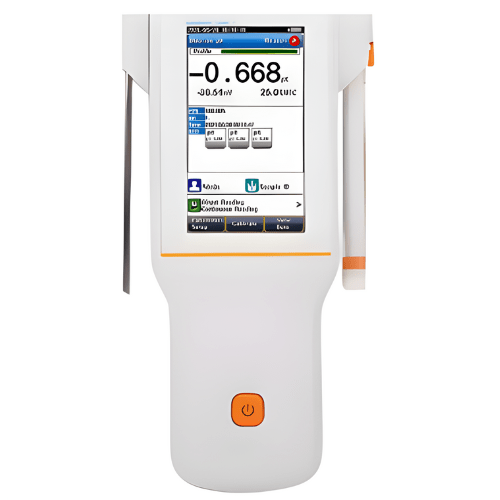

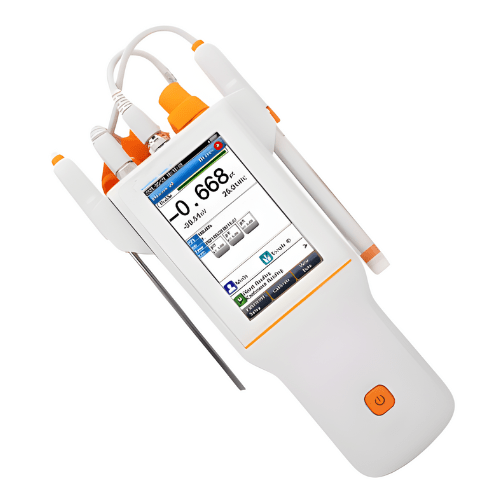

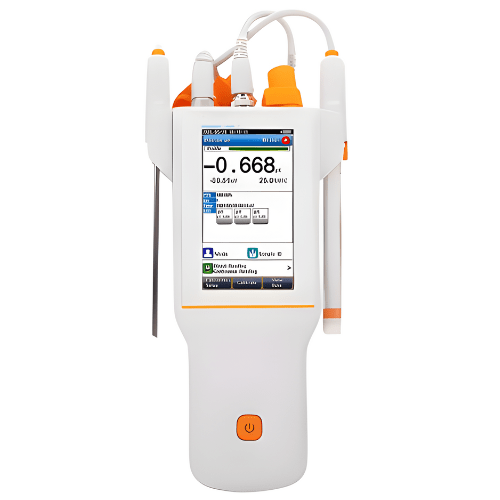

Acoustic Testing Pro Portable Ion Meter
Acoustic Testing Pro portable ion meter is an electrochemical analyzer used to measure the ion concentration in a solution.
Overview
Acoustic Testing Pro portable ion meter is an electrochemical analyzer used to measure the ion concentration in a solution. Measurement of H + also belongs to the ion meter, we generally call its PH meter or acidity meter, the general people refer to the ion meter is measured in addition to H + other than the electrochemical instruments.
Features
- LCD display screen, 3.5 inches.
- Multi reading feature allows auto read, timed read and continuous read.
- Automatic or Manual temperature compensation ensures accurate results.
- Auto holds feature senses and locks the measurement endpoint.
- Data capacity of up to 500 sets for each parameter (GLP compliant).
- Support for USB communication.
- Auto power off feature effectively extends the battery service life.
- The reset feature automatically resumes all settings back to factory default options.
- IP65 waterproof.
Technical Specifications
| Parameters | pH per ISE per Temp. (mV or pX) |
| PH | Range, -2.00 pH to 20.00 pH Resolution, 0.1 pH, 0.01 pH Accuracy, ± 0.01 pH Calibration Points, up to 5 |
| MV or ORP | Range -2000.0 mV to 2000.0 mV Resolution, 0.1 mV Accuracy, ± 0.3 mV or ± 0.1 % |
| PX | Range, -2.00 to 20.00 pX Resolution, 0.1, 0.01 pX Accuracy, ±0.02 pX Calibration Points, Up to 5 |
| ISE | Range, 1 E-9 to 9.999 E9 Units, mol or L, mmol or L, g or L, mg or L, μg or L Resolution, Up to 4 significant digits Accuracy, ± 0.5 % Calibration Points, Up to 5 |
| Temperature | Range 23 °F to 230 ºF (-5 °C to 110 ºC,) Unit, ºC, ºF Resolution, 0.1 Relative Accuracy, ±0.2 |
| Measurement | Reading Mode Auto Read (Fast, Medium, Slow), Timed, Continuous Reading Prompts, Reading, Stable, Locked Temp. Compensation, ATC, MTC |
| Outputs | USB, PC, printer |
| Auto Shutdown | 300, 600, 1200, 1800, 3600sec., off |
| IP Rating | IP65 |
| Power | Rechargeable Lithium battery, AC Adapter, 100 V to 240 V AC input, DC5 V output |
| Size | 3.54 in x 10.01 in x 0.16 in (90 mm x 255 mm x 4 mm) |
| Weight | 1.1 lb (0.5 kg) |
