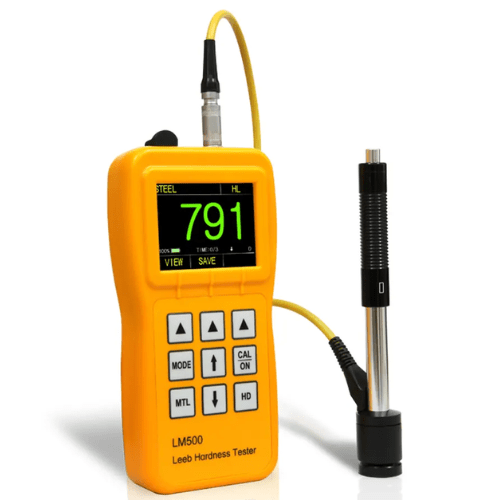

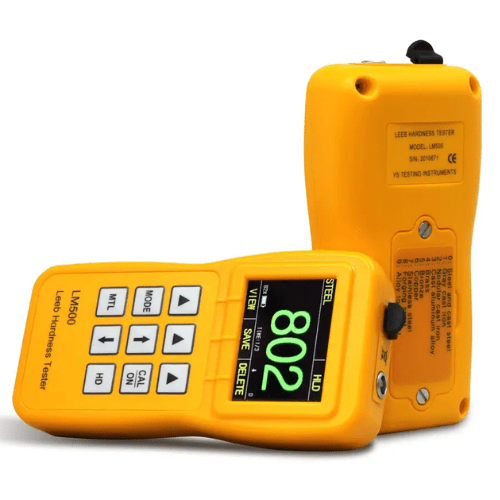

Acoustic Testing Pro Portable Hardness Pen Type

Name: Acoustic Testing Pro Portable Hardness Pen Type - Acoustic Testing Pro
SKU: ACTPPTHT-214

This Portable Hardness Pen Type has a hardness scale of HL, HB, HRB, HRC, HV, HS, memory of 11000 groups, and power of 2AA batteries.

SKU: ACTPPTHT-214 Category: Material Hardness Tools

Technical Specifications

Measuring Method	Leeb Hardness Testing method
Hardness Scale	HL, HB, HRB, HRC, HV, HS
Measuring Range	HLD (200 to 960), HRC (19.8 to 68.5), HB (30 to 651), HV (80 to 976), HS (26.4 to 99.5), HRB (13.5 to 100)
Impact Device	D type (Standard); Optional C/G/DC/DL
Accuracy	±6 HLD (HLD = 800), Repeatability <10 HLD (HLD = 800)
Measuring Direction	Vertically Downwards, Downward Sloping, Level, Upwardly Inclined, Vertically Upwards
Material Compatibility	Steel & Cast Steel, Stainless Steel, GC IRON, NC IRON, Cast Aluminum alloy, Macht metal, Copper-tin alloy, Brass, Forged Steel
Resolution	1 HL, 1 HV, 1 HB, 0.1 HRB, 0.1 HRC, 0.1 HS
Display	Color HD IPS Screen
Memory	11000 Groups (with 1 to 8 impact times)
Power	2 AA batteries
Standard	GB/T 17394-1998, ASTM A956
Working Temperature	14 °F to 122 °F (-10 ℃ to 50 ℃)
Size	6.02 in x 2.99 in x 1.46 in (153 mm × 76 mm × 37 mm)
Weight	0.53 lb. (242 gm (including batteries))
