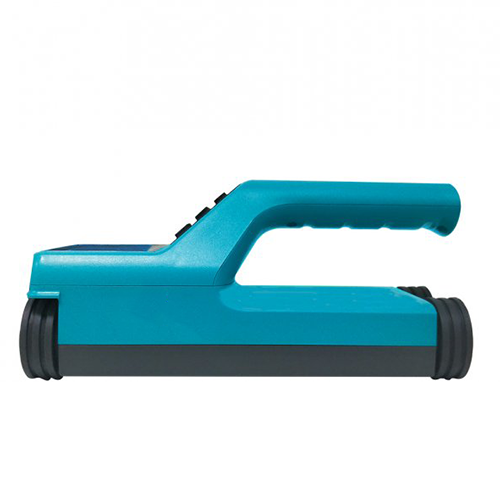

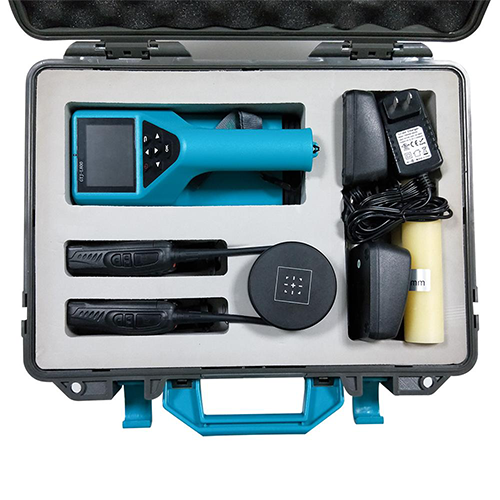

Acoustic Testing Pro Portable Floor Thickness Gauge Tester
Acoustic Testing Pro portable floor thickness gauge tester is a portable and non-destructive testing instrument for measuring the thickness of concrete or other non-ferromagnetic media.
Overview

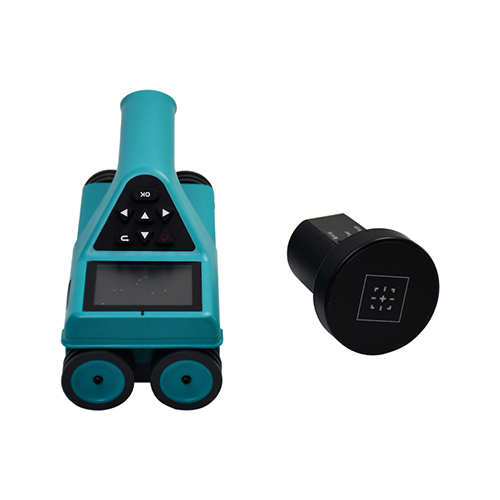

Acoustic Testing Pro portable floor thickness gauge tester is a portable and non-destructive testing instrument for measuring the thickness of concrete or other non-ferromagnetic media. When used, the transmitter and receiver probes are placed on the two relative testing surfaces of the concrete, respectively, to transmit the receive electromagnetic signals, and the instrument is connected according to the connection. The received signal strength is used to measure the concrete thickness.
Features
- Host integrated design, simple operation, easy to carry
- Upgraded wireless cloud transmission function
- Real-time positioning function, arrow direction indicating the position of the emitter probe, the testing process is simple
- The thickness measurement range is wide and the accuracy is high
- Stored components can continue to be detected
- TF card storage makes storage and transmission more convenient and faster
- Instrument calibration can correct the deviation caused by temperature or environment
- Special computer software for data analysis can quickly generate test reports
Technical Specifications
| Thickness test range | 0.8 in to 33.5 in (20 mm to 850 mm) |
| Test accuracy | 0.8 in to 13.8 in: ±0.03 in (20 mm to 350 mm: ±1 mm)
13.82 in to 23.62 in: ±0.08 in (351 mm to 600 mm: ±2 mm) 23.66 in to 33.46 in: ±0.16 in (601 mm to 850 mm: ±4 mm) |
| Data storage capacity | 950 components, 1000 measuring points |
| Data transmission mode | Wireless cloud transport (options) |
| Power supply | Both host and transmitter probes are built-in lithium batteries |
| Humidity | <90% RH |
| Working environment requirements | Non-strong alternating electromagnetic filed
No long direct sunshine |
| Temperature | 14 °F to 104 °F (-10 ℃ to 40 ℃) |
| Host parameters | Screen size: 2.8 in LCD
Resolution: 9.45 in x 12.6 in (240 mm x 320 mm) Volume: 8.66 in x 3.66 in x 4.33 in (220 mm x 93 mm x 110 mm) |
| Weight | 1.32 lb. (600 g) |
