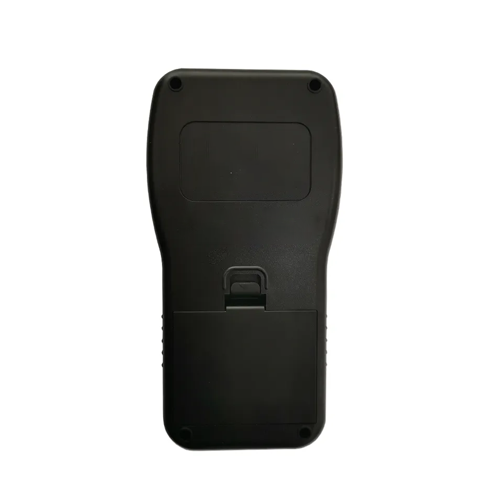

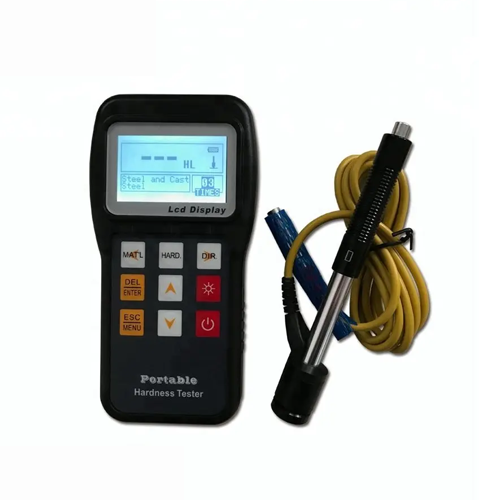

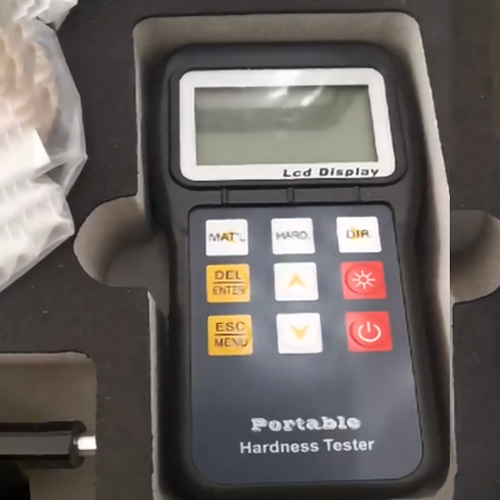

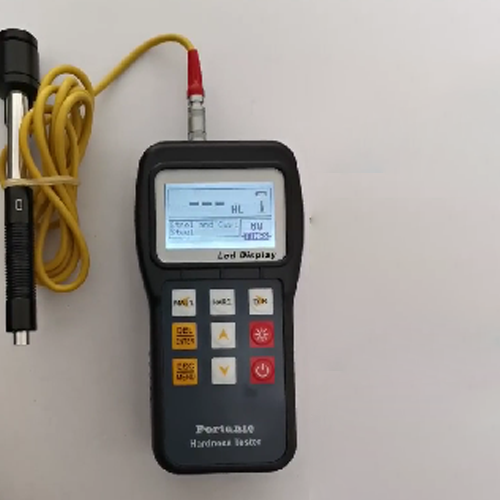

Acoustic Testing Pro Portable Digital LCD Display Ultrasonic Hardness Tester
Acoustic Testing Pro portable digital lcd display ultrasonic hardness tester can perform tests that easily convert to the most popular hardness scales, including Rockwell, Brinell, Vickers, Shore, etc.
Overview
Acoustic Testing Pro portable digital lcd display ultrasonic hardness tester can perform tests that easily convert to the most popular hardness scales, including Rockwell, Brinell, Vickers, Shore, etc. State of the art, digital portable hardness tester is designed to test, the hardness of large hard metal parts. Blazing fast test speeds coupled with memory and output, this unit is a must have for virtually any workshop.
Features
- LCD display of 128 in × 64 in matrix is use
- Hardness scales (HV, HB, HRC, HRB, HRA, HS)
- RS232 interface and USB to PC
- Max 600 groups (impact times: 32 to 1) of data can be stored internally
- Back light display has been used to make convenient or the user in poor light
Technical Specifications
| Hardness scale | HL, HB, HRB, HRC, HRA, HV, HS |
| Data memory | 48 to 600 groups (impact times: 32 to 1) |
| Measuring range | 170 HLD to 960 HLD |
| Standard Impact Device | D |
| Optional Impact Devices | DC, D + 15, G, C, DL |
| Power | 2 V x 1.5 V |
| Continuous Working time approx. | 100 hrs (without back light on) |
| Display LCD | 128 in × 64 in matrix LCD |
| Humidity | ≤90% |
| Operating temperature | 14 °F to 104 °F (-10 ℃ to 40 ℃) |
| Dimensions | 5.98 in x 2.99 in x 1.29 in (152 mm × 76 mm × 33 mm) (main unit) |
| Weight | 1.32 lb (600 g) (main unit) |
