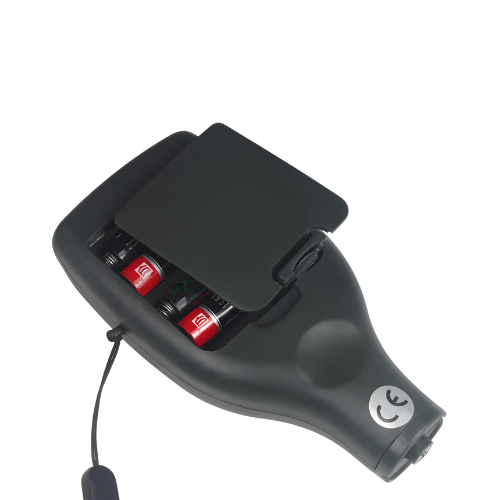

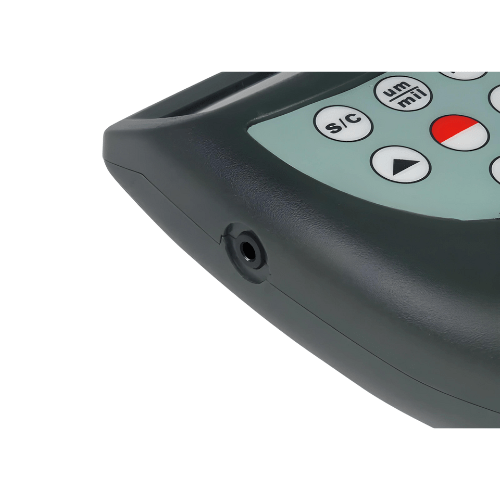

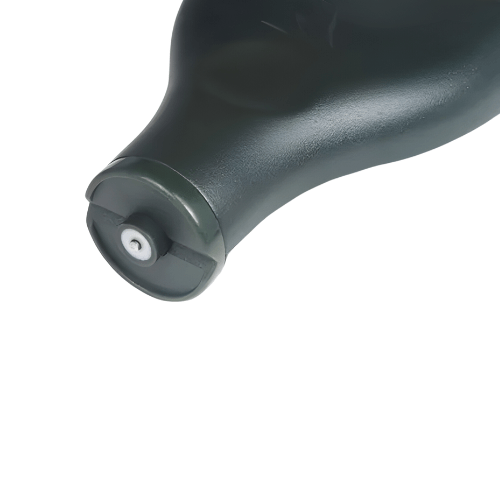

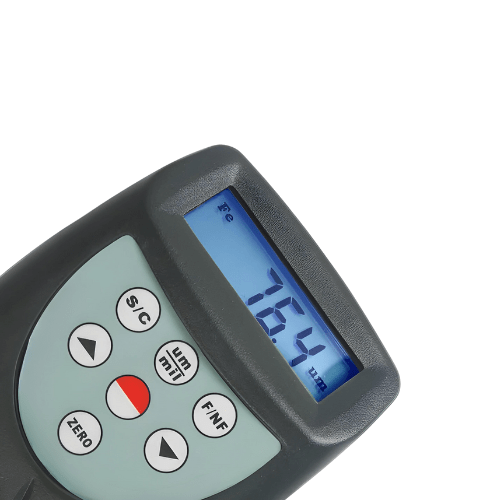

Acoustic Testing Pro Portable Digital Coating Thickness Gauge
This portable digital coating thickness gauge has operating condition of 32 °F to 122 °F , display of 4 digits, and power supply of 4 x 1.5 AAA.
Technical Specifications
| Display | 4 digits, 0.39 in (10 mm) LCD |
| Range | 0 um to 200 um/0 to 8 mil 0 um to 500 um/0 to 20 mil 0 um to 1000 um/0 to 40 mil (default) 0 um to 2000 um/0 to 80 mil |
| Resolution | 0.1 um (0 um to 99.9 um) 1 um (over 100 um) |
| Accuracy | ±1 to 3% n or 2.5 um or 0.1 mil |
| Power Supply | 4 x 1.5 AAA (UM-4) battery |
| Operating Condition | Temp. 32 °F to 122 °F (0 ℃ to 50 ℃), Humidity < 80% |
| Size | 5.0 in x 2.6 in x 1.1 in (126 mm x 65 mm x 27 mm) |
| Weight | 0.18 lb (81 g) |
