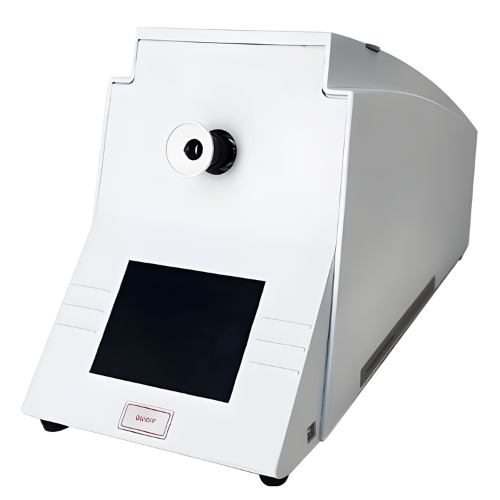

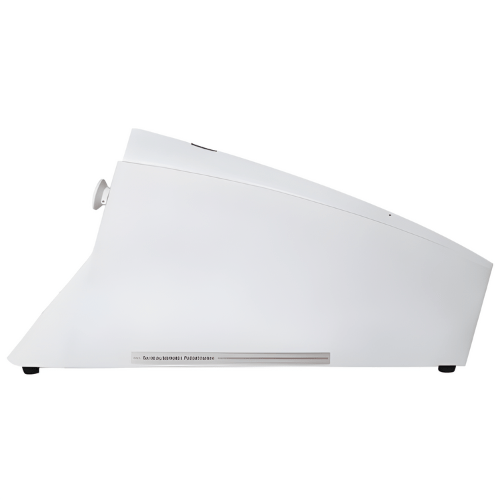

Acoustic Testing Pro Polarimeter pH Meter
This Polarimeter pH Meter has a range of ±90 °Z or ±130 °Z, display of 5.6 inches TFT touch screen, power of AC 220V/50Hz, 1 to 3 point of calibration
Features
- Multi-parameter semi-automatic polarimeter
- Equipped with a 5.6-inch TFT touch screen
- 4 measurement functions are optional
- Includes optical rotation, specific rotation, etc
- Long-life LED
- Avoids the 200-hour usage limit of traditional light sources
- Automatic zero reset
- One key to restore the optical zero point of the instrument
- Automatic temperature compensation
- Instantly convert the measured value to the specific rotation value
- Selectable tube length or custom input
- 1-to-3-point calibration
- Ensure the accuracy of measurement in the full range
- Automatic information prompts
- Help users understand the currently executable operation steps
- 100 sets of data storage
- Automatic marking of date/time
- Sample name can be input
- Reset function restores the meter to default settings
Technical Specifications
| Range | ±90 °Z or ±130 °Z |
| Resolution | 0.005 °Z |
| Accuracy | ±0.02 °Z or ±0.05 °Z |
| Calibration Points | 1 point to 3 point |
| Light Source | LED and interference filter |
| Optical Wavelength | 589 nm |
| Sample Tube Length | Up to 7.87 in (200 mm) |
| Data Storage | 100 data sets |
| Communication Interface | USB |
| Display | 5.6 in TFT touch screen |
| Power Requirement | AC 220 V/50 Hz |
| Temperature Correction | 32 °F to 122 °F (0 °C to 50 °C) |
| Dimension | 21.65 in x 11.81 in x 8.66 in (550 mm × 300 mm × 220 mm) |
| Weight | 16.5 lb. (7.5kg) |
