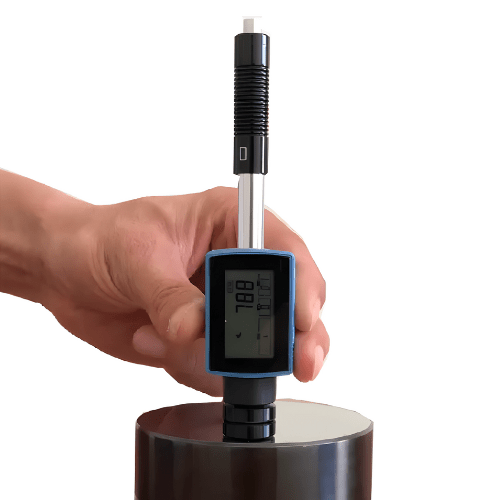

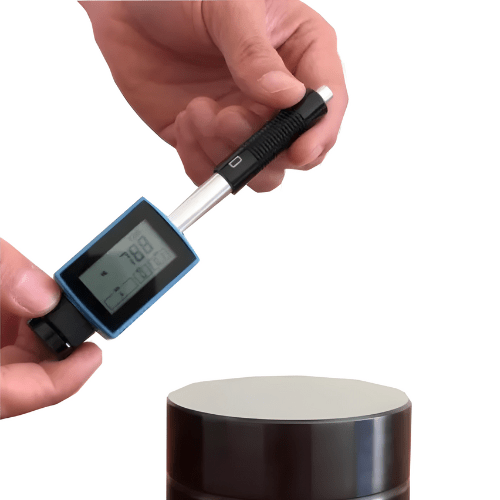

Acoustic Testing Pro Pen Type Portable Leeb Hardness Tester
This portable Leeb hardness tester has 5 V power supply, voltage of 3.7 V, Min depth for harden layer of 0.8 mm and measuring range of 170 HLD to 960 HLD
Features
- Portable Design
- High Precision Measurement
- Wide Measurement Range

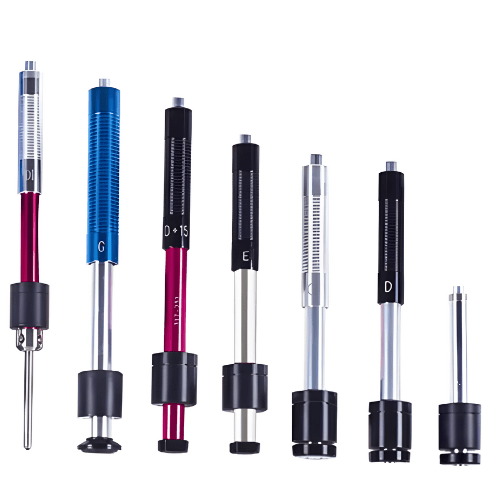

- Impact Device Options
- User-Friendly Interface
Technical Specifications
| Measuring Range | 170 HLD to 960 HLD |
| Impact Direction | Vertically downward, oblique, horizontal, oblique, vertical upward, automatically identify |
| Error Impact Device D | – 6 HLD to 6 HLD |
| Repeatability Impact Device D | – 6 HLD to 6 HLD |
| Material | Steel and cast steel, Cold work tool steel, Stainless steel, grey cast iron, Nodular cast iron, Cast alum |
| Hardness Scale | HL, HB, HRB, HRC, HRA, HV, HS |
| Min Depth for Harden Layer | D ≥ 0.0315 in (0.8 mm) C ≥ 0.00787 in (0.2 mm) |
| Display | High contrast Segment LCD |
| Storage | Up to 100 group (Relative to average times 32 to 1） |
| Calibration | Single point calibration |
| Data Printing | Connect PC to print |
| Working Voltage | 3.7 V (Built in lithium polymer battery） |
| Power Supply | 5 V or 500 mA recharge for 2.5 hours to 3.5 hours |
| Standby Period | About 200 h (without backlight） |
| Communication Interface | USB 1.1 |
| Working Language | Chinese |
| Shell Material | ABS engineering plastic |
| Dimensions | 5.82 in × 1.29 in × 1.10 in (148 mm × 33 mm × 28 mm) |
| Total Weight | 8.82 lb (4 kg) |
