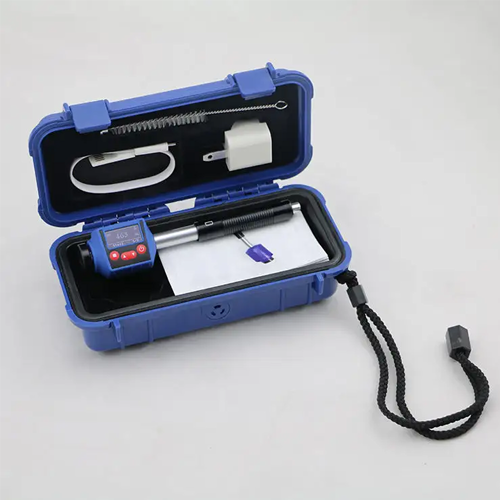

Acoustic Testing Pro Pen Type Leeb Hardness Tester

Name: Acoustic Testing Pro Pen Type Leeb Hardness Tester - Acoustic Testing Pro
SKU: ACTPHDT-187

This Pen Type Leeb Hardness tester has a temperature range of 50 ℉ to 122 ℉, testing range of 170 HLD to 960 HLD and rechargeable lithium battery.

SKU: ACTPHDT-187 Category: Material Hardness Tools

Technical Specifications:

Testing Direction	Highly accurate in any impact direction
Testing range	170 HLD to 960 HLD, 17.9 HRC to 69.5 HRC, 19 HB to 683 HB, 80 HV to 1042 HV, 30.6 HS to 102.6 HS, 59.1 HRA to 88 HRA, 13.5 HRB to 101.7 HRB
Hardness standards	HL, HV, HRA, HRC, HRB, HB, HV, HS
Applicable materials	Steel and cast steel, alloy tool steel, stainless steel, grey cast iron, nodular cast iron, cast aluminium alloy, copper zinc alloys (brass), an alloy of copper and tin, copper (bronze)
Repeatability value	HLD: 0.8% (800 HLD)
Resolution	128 x 64 OLED Display
Power supply	Rechargeable lithium battery
Working hours	About 10 hrs
Operating temperature	50 ℉ to 122 ℉ (10 ℃ to 50 ℃)
Storage Temperature	-22 ℉ to 140 ℉ (-30 ℃ to 60 ℃)
Humidity	90% max
Dimensions	5.8 in x 1.57 in x 1.18 in (148 mm x 40 mm x 30 mm)
