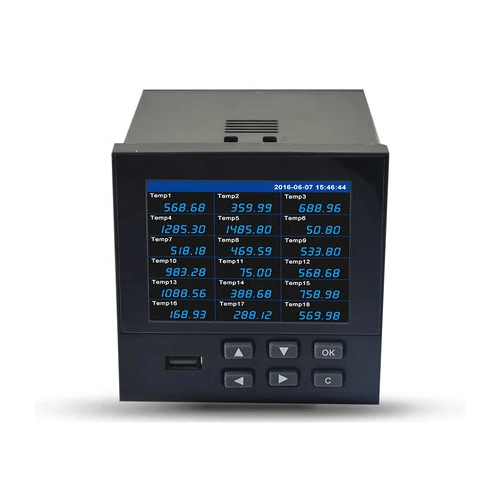

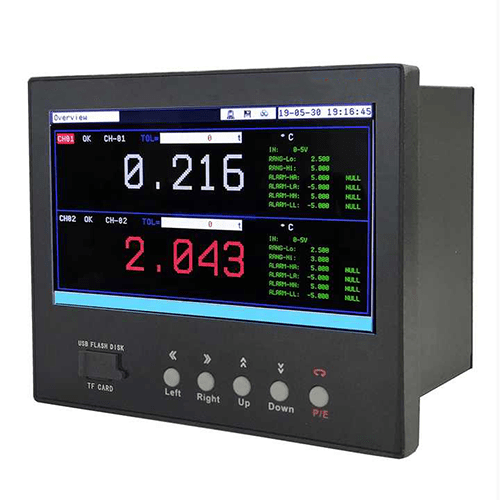

Acoustic Testing Pro Paperless Temperature Data Logger
This Paperless Temperature Data Logger has a power supply of 100 VAC to 240 VAC, 400 VAC photo electrical isolation, and 24 VDC auxiliary feed output.
Technical Specifications
| Accuracy | ±(0.2% of FS + 1) digital |
| Display | 7 in Color LCD TFT, TOUCH SCREEN |
| Power Supply | 100 VAC to 240 VAC |
| Match Function(optional) | +, -, x, /, average, max, mini |
| Flow Totalizer (optional) | 1 to 32 channels, with temperature, pressure compensation |
| Communication | RS 485 MODBUS-RTU, Ethernet TCP, IP |
| Feed Output | Auxiliary 24 VDC output for transmitter |
| Input Channels | 1, 2, 3, 4, 5, 6, 7, 8……16….24….32, optional |
| Channels Isolation | 400 VAC photo electrical isolation |
| Sample Rate | 1 seconds per 8 channels |
| Memory Capacity | Memory capacity can be set flexibly according to the memory interval time setting. Huge capacity for long time data saving up to 10 years with power off protection |
| Memory Interval time | 1, 2…….3600 seconds, can be set flexibly as required in recorder |
| PC software | Powerful software function to display memorized data in digital curve, Print Data and export the data to excel for further analysis |
| Size, Installation Size | 7.09 in x 5.91 in x 6.30 in or 5.43 in x 5.43 in (180 mm x 150 mm x 160 mm or 138 mm x 138 mm) |
