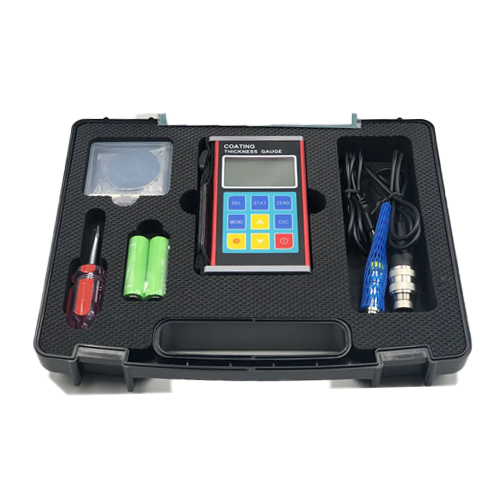

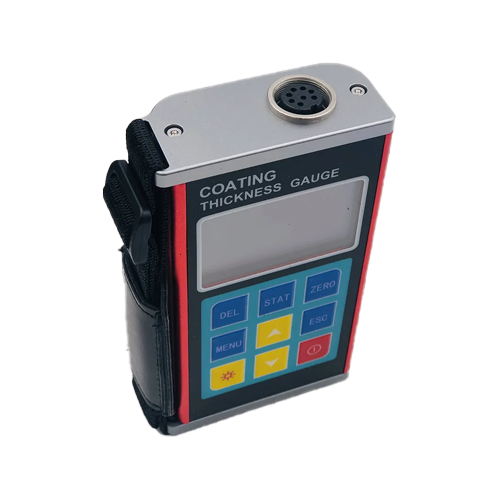

Acoustic Testing Pro Painting Thickness Gauge Tester
Acoustic Testing Pro painting thickness gauge tester is one of popular coating thickness gauge, which equips with ferrous probe, adopting magnetic measuring method to measure the thickness of non-magnetic coatings on magnetic metal substrates.
Overview
Acoustic Testing Pro painting thickness gauge tester is one of popular coating thickness gauge, which equips with ferrous probe, adopting magnetic measuring method to measure the thickness of non-magnetic coatings on magnetic metal substrates. Such coatings include paint, plastic film, chromium layer, copper layer, zinc coating, enamel etc.
Features
- 8 types of probes are available
- Strong metal shell, durable and stable in usage
- Standard data pro software comes
- Two measuring modes: continue / single
- Two working modes: direct mode (DITECT) and Batch mode (APPL)
- 5 statistic ways: Mean values / Max. values / Min. values / Testing numbers (No.) / Standard deviations (S. Dev)
- Two measuring calibration modes
- With backlight display
- 640 measured values can be stored
- Low battery indication
- 2 switch off modes: manual and auto.
Technical Specifications
| Operation language | English / Russian / Spanish |
| Standards | DIN, ISO, ASTM, BS |
| Calibration | Zero and foil calibration |
| Interface | USB |
| Statistic | Number of measurements, mean, standard deviation, maximum and minimum |
| Data memory | 640 readings |
| Limits | Adjustable with alarm |
| Power supply | NiMH rechargeable battery |
| Temperature | 32 °F to 104 °F (0 °C to 40 °C) |
| Humidity
|
20% to 90% |
| Environment | No strong magnetic field |
| Dimensions | 9.05 in x 3.38 in x 1.85 in (230 mm x 86 mm x 47 mm) |
