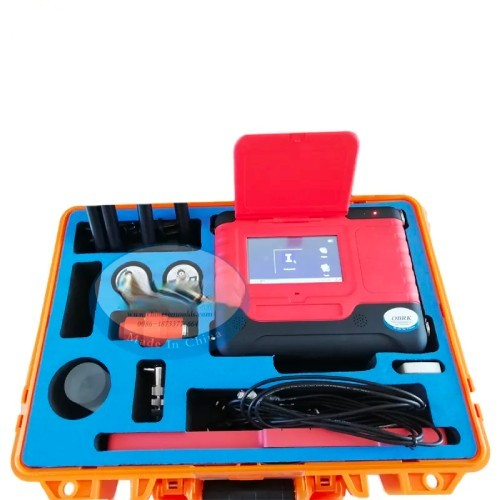

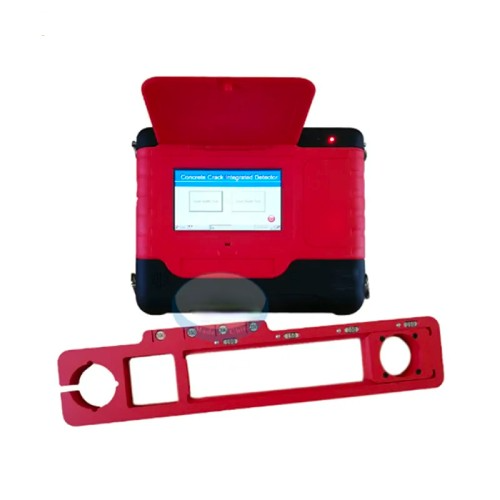

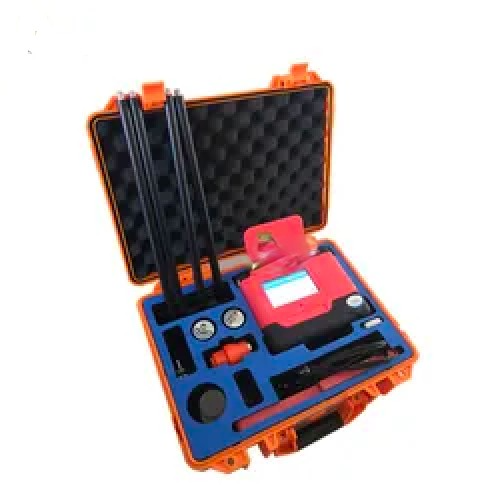

Acoustic Testing Pro Multifunction Ultrasonic Crack Detector
Acoustic Testing Pro multifunction ultrasonic crack detector is mainly designed to accurately detect crack width and depth in bridges, tunnels, concrete pavements and so on.
Overview
Acoustic Testing Pro multifunction ultrasonic crack detector is mainly designed to accurately detect crack width and depth in bridges, tunnels, concrete pavements and so on. It is a multi-purpose instrument which can measure both the crack width and depth. Operators can not only view and record the crack width with color amplification probe, but also can measure the crack depth with ultrasonic probe.
Features
- Real-Time Monitoring
- Remote Monitoring measurements and data from a central location
- Reducing the need for frequent site visits
- Data Logging and Storage
- Alarm and Alert Systems
- Data Visualization and Analysis
- Integration with Structural Monitoring
- Compatibility and Flexibility
Technical Specifications
| Crack Width Test Rang | Standard: 0.0004 in to 0.25 in (0.01 mm to 6.5 mm) |
| Crack Width Test Accuracy | Standard Probe: ≤± 0.0008 in (0.02 mm); High Grade Probe: ≤± 0.0004 in (0.01 mm) |
| Crack Depth Test Rang | 0.39 in to 19.68 in (1 cm to 50 cm) |
| Crack Depth Test Accuracy | ≤±5% |
| Power | Rechargeable Lithium Battery |
| Working Time | ≥28 Hours |
| Working Temperature | 14 °F to 122°F (-10 ℃ to 50 ℃) |
| Working Humidity | ≤90% RH |
| Weight | 11.02 lb (5 kg) |
