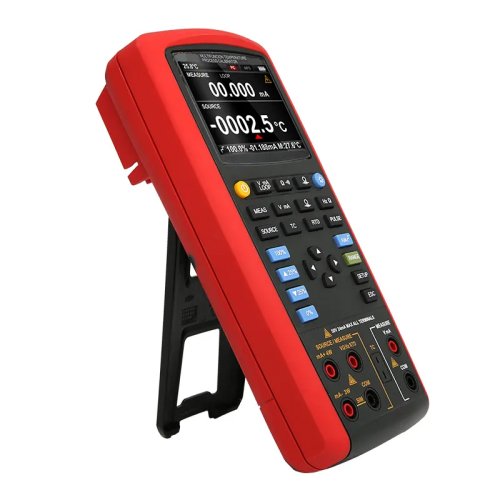

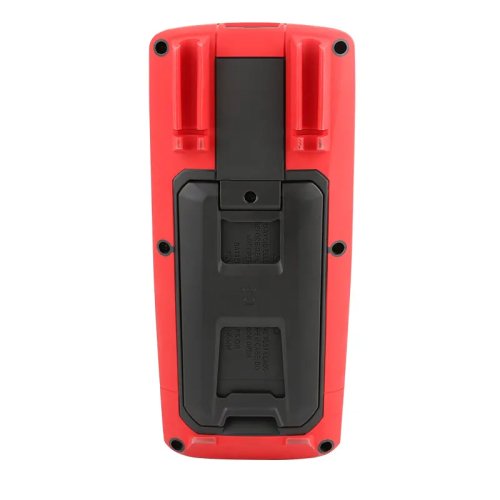

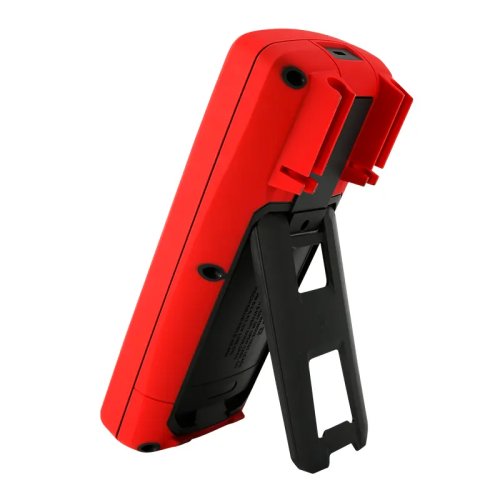

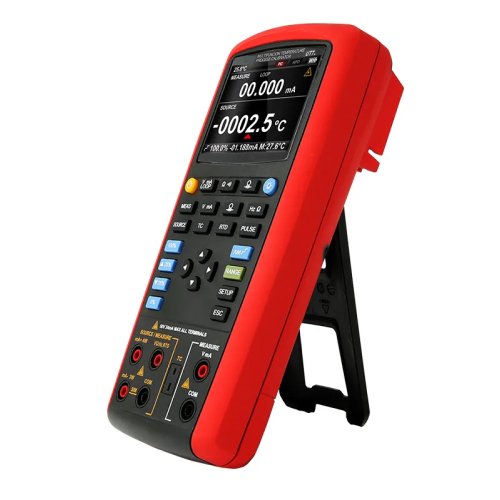

Acoustic Testing Pro Multifunction Process With Temperature Calibrator
Acoustic Testing Pro multifunction process with temperature calibrator combines with loop process calibrator function.
Overview
Acoustic Testing Pro multifunction process with temperature calibrator combines with loop process calibrator function. You can easily measure and source most of the process parameters: mA, volts, temperature, frequency, ohms in one tool.
Features
- Rechargeable battery
- Step/ramp functions
- Contract adjustment
- Source and measure accuracy up to 0.02%
- Auto power off (Time adjustable)
- Stores and recalls setups

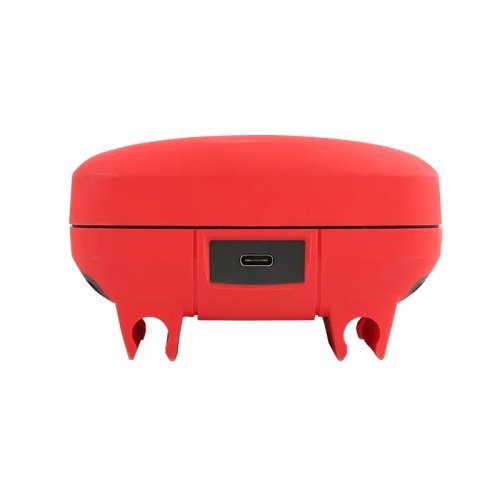

- USB communication
- Simultaneously measure and output differ process signal in real time
- Pressure measure with specified pressure modules, and sourcing pressure
- Provides 24 V loop power to transmitter while conducting mA current measurement at the same time
Technical Specification
| Resistance | 500 Ω to 5000 Ω |
| Measurement Pulses (Hz) | 1 kHz to 15 kHz (1 to 100000 periods) |
| MeasurementDC voltage (V) | 50 mV, 500 mV, 50 V |
| Measurement DC current (mA) | 20 mA |
| Measurement Loop current | 20 mA |
| Measurement Resistance | 500 Ω, 5000 Ω |
| Measurement Frequency (Hz) | 100 Hz, 1 kHz, 10 kHz, 100 kHz |
| Measurement Thermocouples | R, S, K, E, J, T, N, B, L, U, XK, BP |
| Display count | 20000 |
| Operation temperature | 14 °F to 131 °F (-10 °C to 55 °C) |
| Power | 1.2 V x 6 AA rechargeable battery |
| Source accuracy Thermocouples | R, S, K, E, J, T, N, B, L, U, XK, BP |
| Source accuracy Frequency (Hz) | 200 Hz, 2000 Hz, 20 kHz, 100 kHz |
| Source accuracy Resistance (Ω) | 400 Ω, 4000 Ω, 40 kΩ |
| Source accuracy Operation temperature | 14.0 °F to 131 °F (-10 °C to 55 °C) |
| RTDs | Pt 100 to 385, Pt 100 to 392, Pt 100 to JIS, Pt 200 to 385, P 500 to 385, Pt 1000 to 385, Cu 10, Cu 50, Cu 100, Ni 120 |
| Standard accessory | Test lead, USB cable, power adapter, temperature probe, English manual |
| Product size | 7.68 in x 3.74 in x 2.28 in (195 mm x 95 mm x 58 mm) |
| Product net weight | 1.43 lb (650 g) |
