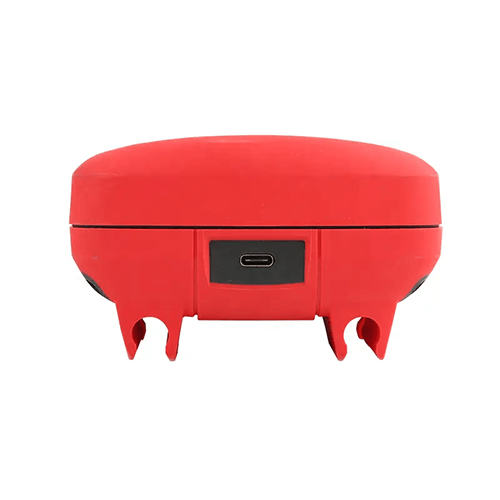

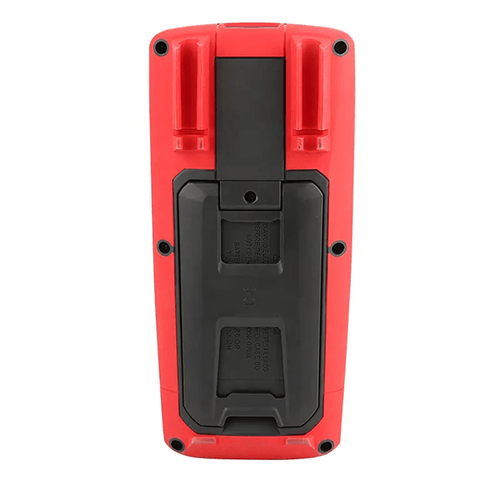

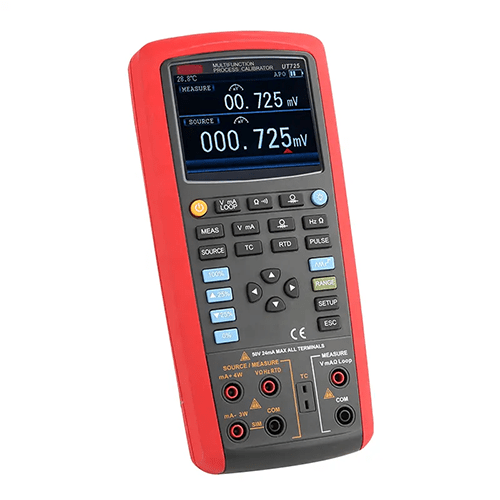

Acoustic Testing Pro Multifunction DC Voltage Loop Process Calibrator
Acoustic Testing Pro multifunction dc voltage loop process calibrator measures and sources loop current and voltage.
Overview
Acoustic Testing Pro multifunction dc voltage loop process calibrator measures and sources loop current and voltage. It is designed with 0.02% accuracy, adjustable backlight, and auto power off. It is a powerful tool for calibration, repair, and maintenance of mA loops.
Features
- Step or ramp functions
- Sources and measure accuracy up to 0.02%
- Rechargeable battery
- Contrast adjustment
- Auto power off (Time adjustable)
- Stores and recalls setups
- USB communication
- Provides 24 V loop power to transmitter
- mA current measurement
Technical Specifications
| DC voltage | 200 mV or 30 V ± (0.02%+2) |
| DC current | 20 mA ± (0.02%+2) |
| Loop current | 20 mA ± (0.02%+2) |
| Frequency | 100 Hz or 1 kHz or 100 kHz ± (0.01%+1) |
| DC voltage | 100 mV or 1000 mV or 10 V ± (0/02%+10) |
| DC current | 20 mA or 20 mA (SIM) ± (0.02%+10) |
| Frequency | 200 Hz or 2000 Hz or 20 kHz ± (0.01%+1) |
| Pulses | 100 Hz or 1 kHz or 10 kHz ±1 |
| Loop power output | 24 V ±10% |
| Display count | 20000 |
| Power | 1.2 V x 6 AA rechargeable battery |
| Product size | 7.68 in x 3.74 in x 2.28 in (195 mm x 95 mm x 58 mm) |
| Product net Weight | 1.43 lb (650 g) |
