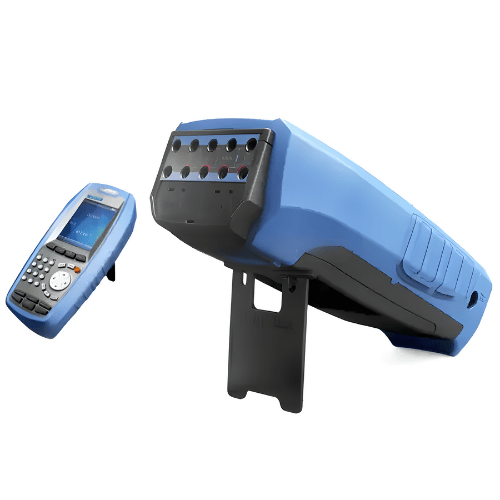

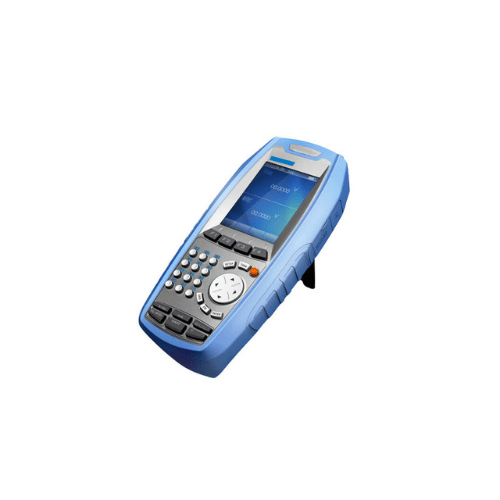

Acoustic Testing Pro Multi-Function Loop Calibrator
Acoustic Testing Pro multi-function loop calibrator is a process tool for measuring, sourcing, and simulating loop current, mV or V, loop integrity, and perform switch testing.
Overview
Acoustic Testing Pro multi-function loop calibrator is a process tool for measuring, sourcing, and simulating loop current, mV or V, loop integrity, and perform switch testing. Its smart phone-like menu and interface makes it simple and easy to use. It is an idea for calibrating, maintaining, and troubleshooting various loop devices in the field.
Features
- Measuring and sourcing loop current, mV and V independently
- 24 V loop power supply with independent measuring and sourcing function
- Documenting storage and automated procedure capability
- Easy to operate
Technical Specifications
| Electricity Signal Measurement Accuracy | Current | -30 mA to 30 mA, ±(0.01% RD+0.005% FS), 0.1 uA |
| Voltage | -60 V to 60 V, ±(0.01% RD+0.005% FS), 0.1 mV | |
| mV | -200 mV to 200 mV, ±(0.01% RD+0.005% FS), 1 uV | |
| Loop Continuity | 0 Ω to 2000 Ω, ±(0.02% RD+0.005% FS) | |
| Limit Switch | If the switch has detective voltage, its range is 3 V to 24 V | |
| Electricity Signal Source Accuracy | Current | 0 mA to 22 mA, ±(0.02% RD+0.005% FS), 0.1 uA |
| Voltage | 0 V to 12 V, ±(0.02% RD+0.005% FS), 0.1 mV | |
| mV | 0 mV to 200 mV, ±(0.02% RD+0.005% FS), 1 uV | |
| DC 24 V | 24 V ±0.5 V, ±0.5 V | |
| Weight | 3.31 lb (1.5 kg) | |
