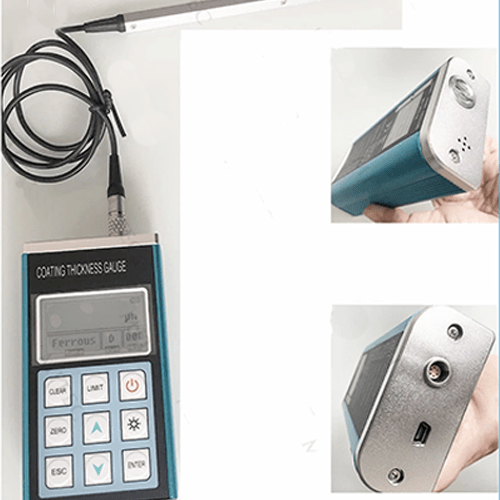

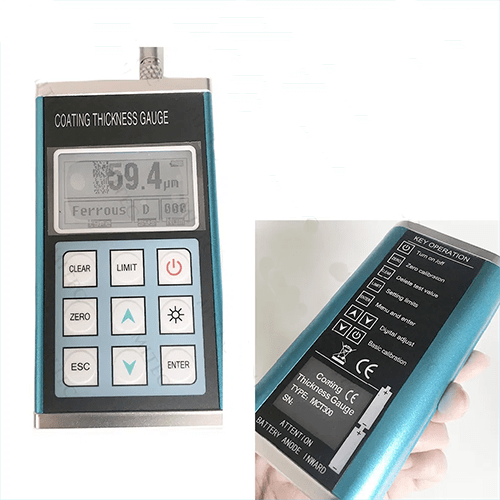

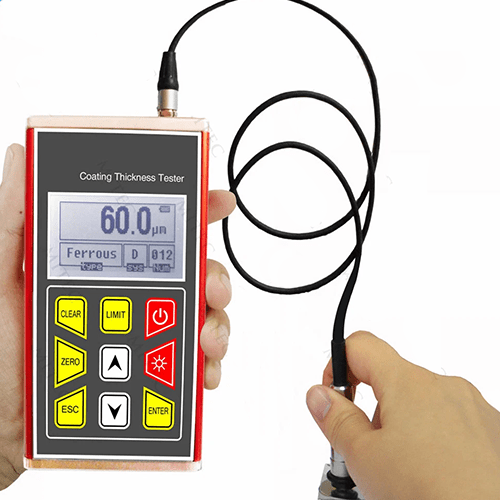

Acoustic Testing Pro Measuring Tools Portable Coating Thickness Gauge
This Measuring Tools Portable Coating Thickness Gauge has power of AA battery 2 pcs, temperature 14 °F to 122 °F, resolution of 0.1 μm or 1 μm.
Features
- Fast, precise, non-destructive coating thickness measurement
- Measure non-magnetic coating on magnetic substrates
- Detect non-conductive coatings on conductive substrates
- Various probes available, with an auto-matching feature
- Durable ruby probe for wear resistance
- Sturdy, portable full metal shell design
- Settable range alarm for measurement control
- Five statistical values for higher accuracy
- Large storage, easy deletion of saved values
- Optional PC software for convenient analysis
Technical Specifications
| Measuring Range | Standard 0 μm to 1250 μm (MAX 10000 μm with probe F10) |
| Resolution | 0.1 μm or 1 μm |
| Accuracy | ± 2 % H + 1 μm Note: H is the thickness reading |
| Display | 128 x 64 LCD with backlight |
| Memory | 5 Files x 99 values |
| Working Temperature | Operation Temp: 14 °F to 122 °F (-10 °C to 50 °C) or Storage Temp: -22 °F to 158 °F (-30 °C to 70 °C) |
| Power | AA Battery 2pcs (non-aviation transport) |
| Size | 4.92 in x 2.64 in x 1.22 in (125 mm x 67 mm x 31 mm) |
