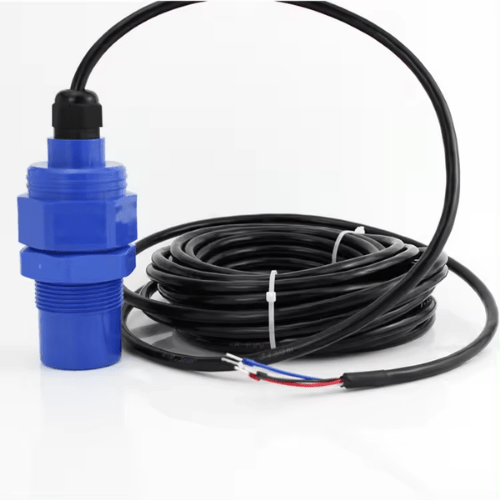

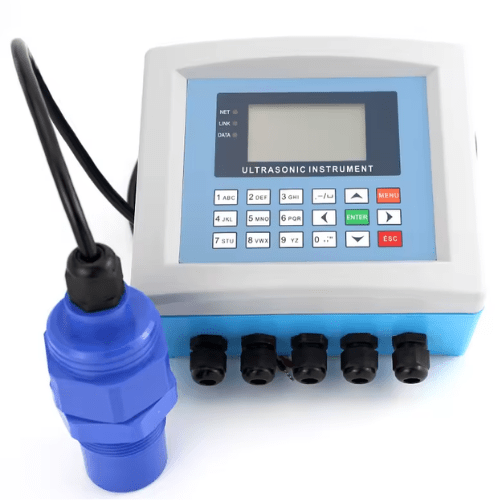

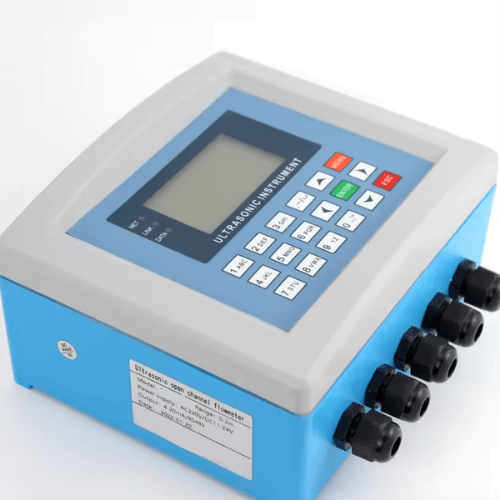

Acoustic Testing Pro Measuring Canal Water Flow Meter
This Measuring canal water flow meter has a flow accuracy is 5 % , blind spot is 0.06 m to 2 m and protection class is IP65 and probe material is ABS.
Technical Specifications
| Cumulative flow range | 0 to 9999999 (full 8 bits are cleared, the accumulated times are incremented by 1, and the flow unit is set according to the setting) |
| Instantaneous flow range | 10 L per s to 100 m 3 per s (determined by the type and specification of the weir tank) |
| Flow accuracy | 5 % |
| Blind spot | 0.06 m to 2m (depending on different sensors) |
| Ranging range | Default 3 m (customizable) |
| Probe material | ABS material |
| Protection class | IP65 |
| Cable length | 10 m shielded cable (customizable) |
| Power supply | AC 85 V to 380 V, DC 11 V to 24 V |
| Power consumption | 5 W |
| Input signal | Ultrasonic probe, RS485 serial port |
| Output signal | 1 (standard) or 2, 4 mA to 20 mA, 4 relays, RS485 |
| Sensor Mounting Interface | Standard 485 interface (24 V power supply) x 2 |
| Working environment | Temperature and pressure |
| Data browsing | Quickly view hour, day, month, and year traffic records |
| Option function | Support U disk data export |
