Acoustic Testing Pro Manual Ultrasonic Portable Hardness Tester

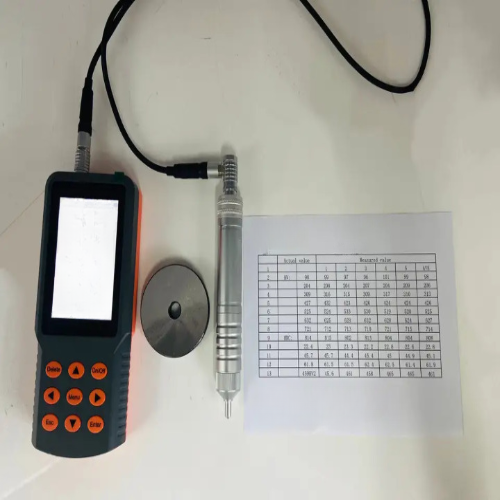

Acoustic Testing Pro manual ultrasonic portable hardness tester is composed of host, probe, and probe connection cable.
Overview

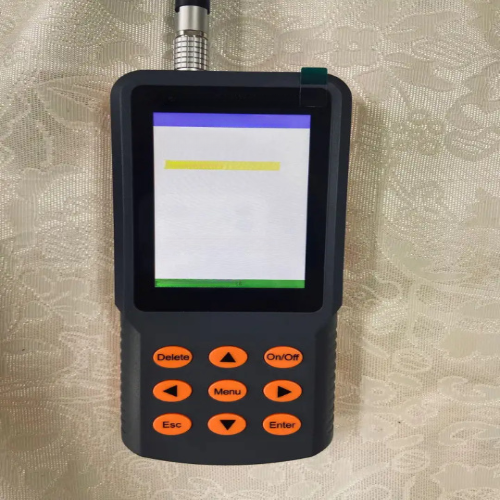

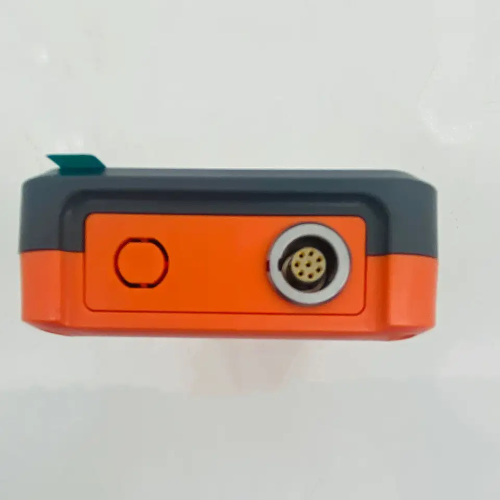

Acoustic Testing Pro manual ultrasonic portable hardness tester is composed of host, probe, and probe connection cable. The probe is connected to the host with an eight-core connection cable for signal transmission. The host adopts a color display with rich display content.
Features
- Hardness test of flange edge and gear root stamping parts, mold, thin plate, face-hardened gear tooth, gear groove and taper part
- Hardness test of axle and thin-wall pipes and vessels
- Hardness test of wheels and turbine rotors
- Hardness test of bit edge
- Hardness test of welding parts
- Measure the depth of deep hole with certain aperture, concave and convex with large radians, and irregular plane
- Hardness test of most ferrous and nonferrous metals and their alloys in industrial production
- Hardness test of thin coatings
Technical Requirements
| Convertible hardness scale | HRC, HRA, HRB, HBW |
| Main hardness scale | HV |
| Measuring Range | HV 50 to 1599, HRC 20 to 68, HB 85 to 650 |
| Battery | 3.6 V, 3000 mAh lithium battery |
| Measuring Direction | Support 360° |
| Simple calibration | 5 sets of one-block calibration data |
| Customized support | OEM |
| Hardness Indication | LCD display |
| Accuracy | ±4% HB, ±1.5 HR, HV please refer to the table below |
| Net Weight | Approximate 1.10 lb (500 g) (Without probe) |
